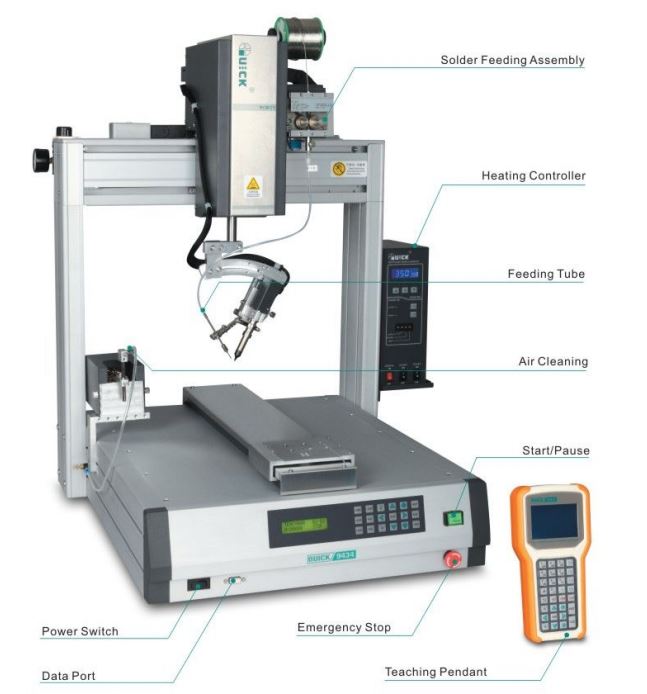

The QUICK 9434 is a 4-axis soldering robot for automated, repeatable point and drag soldering. It comes as a complete package with iron, feeder and controller.

Key Features of the QUICK 9434 Soldering Robot

• 4-axis with 300° rotation
• ±0.02mm repeat accuracy
• Perfect for repeat soldering jobs

A Complete System

The package includes a teach pendant, QUICK378C heating controller and QUICK371H/371HI solder wire feeder. In addition, it comes with a QUICK9018AM soldering iron, 911G tips and a tip cleaner with dross box. A fume extractor is optional.

Precise Motion

The robot offers ±0.02mm repeat accuracy and 0.01mm resolution. As a result, every joint lands in the same place, run after run.

Easy Programming

You program jobs with the teach pendant. So operators can set up new boards quickly and store them for later.

Product Specifications

• Voltage: 100 to 240V AC
• Power: 150W
• Temperature range: 50°C to 500°C (depending on mode)
• Axes: 4
• Movement range: X 400mm, Y 400mm, Z 100mm, R 300°
• Speed range: X and Y 0.1 to 800mm/sec, Z 0.1 to 300mm/sec, R 0.1 to 800°/sec
• Repeat accuracy: ±0.02mm, R ±0.02°
• Resolution: 0.01mm, R 0.01°
• Loaded weight: worktable 8kg, head 2kg
• Demo files: up to 999, with up to 60,000 points per file
• Process files: up to 255
• Solder wire diameter: 0.3, 0.5, 0.6, 0.8, 1.0 and 1.2mm
• Operating temperature: 0°C to 40°C
• Humidity: 20% to 90% (non-condensing)
• Size (W x D x H): 570 x 570 x 790mm
• Weight: around 28kg

Why Choose This Soldering Robot?

For example, it takes repetitive hand soldering off your team and delivers consistent joints. Therefore, the QUICK 9434 helps you raise quality and free up skilled staff.

Browse our full range of soldering and dispensing robots to find the right fit for your line.
