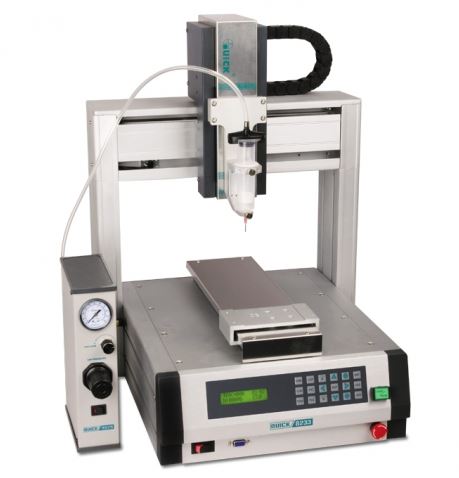

The Seamark NOW QUICK 8233 is a cost-effective, 3-axis dispensing robot with a neat linear structure platform. It gives you accurate, programmable dispensing for a wide range of jobs.

Key Features of the Seamark NOW QUICK 8233 Dispensing Robot

• ±0.02mm repeat accuracy
• 250 x 250 x 100mm travel
• Perfect for dots, lines and circles

Easy Programming

A teach pendant makes programming simple. In addition, you can set dispensing speed and time separately, and calibrate the start point for accurate results.

Precise Motion

High-precision stepper motors control the dispensing path. As a result, the robot follows each path accurately, with a resolution of 0.01mm.

Dispense Any Shape

The robot can dispense points, lines, circles and other shapes. So it suits many different adhesive, sealant and paste applications.

Works With Your Equipment

A wide choice of needles, syringes, dispensing valves and controllers is available. Therefore, you can set it up for your exact application.

Product Specifications

• Voltage: 100 to 240V AC
• Axes: 3
• Movement range: X 250mm, Y 250mm, Z 100mm
• Speed range: X and Y 0.1 to 800mm/sec, Z 0.1 to 400mm/sec
• Repeat accuracy: ±0.02mm
• Resolution: 0.01mm
• Loaded weight: worktable 8kg, head 5kg
• Speed control: smooth
• Gluing compensation: glue feeding ahead or delay
• Demo files: up to 999, with up to 60,000 points per file
• Process files: up to 255
• Operating temperature: 0 to 40°C
• Humidity: 20% to 90% (non-condensing)
• Size (W x D x H): 420 x 420 x 580mm
• Weight: around 22kg

Why Choose This Dispensing Robot?

The Seamark NOW QUICK 8233 brings automated, repeatable dispensing to your bench at an accessible price. For example, it helps you replace manual dispensing with consistent, programmed results.
