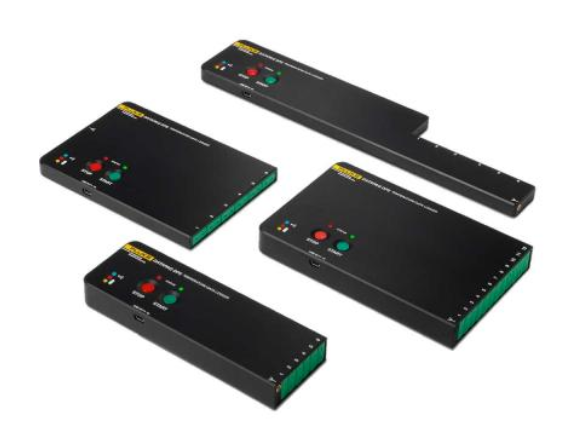

The Datapaq DP5 is an ultra-low profile thermal data logger from Fluke Process Instruments. It delivers the highest level of accuracy and reliability for temperature profiling in reflow ovens and wave soldering machines.

Datapaq DP5 Features

• 6 or 12 thermocouple channels
• Remarkably slim design for low-clearance ovens
• Real-time Bluetooth® data transmission
• Rugged, stainless steel case
• Pairs with high-performance thermal barriers
• Works with Insight™ analysis software

Engineered for the modern SMT line, the DP5’s slim design lets it pass through even the lowest-clearance ovens, with the smallest model measuring just 11.7 mm high and weighing only 0.3 kg. In addition, its advanced Bluetooth® technology enables real-time data transmission over a range of up to 5 metres, so process engineers can monitor thermal profiles instantly on a PC or mobile device without waiting for the logger to exit the oven.

A rugged, stainless steel case houses the unit, and engineers typically pair it with high-performance thermal barriers to withstand extreme temperatures for extended durations. Each Type K thermocouple channel measures from -100°C to 1,370°C with an accuracy of ±0.5°C, and the logger stores up to 50,000 readings per channel across as many as 10 profile runs before it needs a PC download.

Applications

• Reflow oven temperature profiling
• Wave soldering process verification
• SMT line “Pass/Fail” quality reporting

When used with the powerful Insight™ analysis software, the Datapaq DP5 provides comprehensive “Pass/Fail” reporting, oven optimization, and traceable documentation. As a result, it helps ensure that every assembly meets the strict thermal requirements of IPC standards.

Product Specifications

Finally, full technical data for the Datapaq DP5 is available in the product datasheet.
