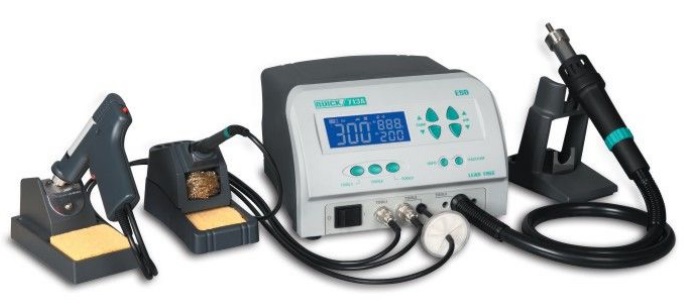

Rework System

About Product

● Password lock function, easy control.
● Temperature adjusted by buttons, with auto sleeping/shut-off function.
● Digital temperature calibration, easy operation.
● Suction pen inside hot air handle, convenient for using.
● Brushless fan, adjustable, stepless and wide range of air volume, suitable for various applications.
● Large air volume cooling function, prolong lifetime of heating element, protect the hot air handle.
● Built-in vacuum pump, powerful suction, no need of external vacuum system.
● Closed-loop sensor, precise temperature.
● Light handle, comfortable for using.

Product Specification
Soldering part:

●Power Consumption 90W
●Temperature Range 200℃-480℃
●Sleeping Temperature Range 50℃-250℃
●Sleeping Time Range 1-150min
●Temperature Stability ±2℃ (Stationary air, no load)
●Ambient Temperature(Max) 40℃
●Tip To Ground Potential <2mV
●Tip to ground resistance ﹤2Ω
Hot air part:
●Power 1000W
●Temperature Range 100℃-500℃
●Air Volume 1-120L/min
●Ambient Temperature(Max) 40℃
●Temperature Stability ±2℃ (Stationary air, no load)
De-soldering part:
●Heating Power 90W
●Nozzle Temperature 200℃ – 480℃
●Pump Diaphragm
●Vacuum Pressure 600mmHG
●Sleeping Time Range 1-150min
