FS BONDTEC 5310 Ball-Wedge Bonder
- Processes gold wires from 17.5 to 50 μm
- Bumping mode and stitchbond mode
- Motor-driven Z-axis for repeatable results
- Colour display with shuttle-wheel input for easy programming
- Manipulator system for creating different loop shapes
- Minimal operator training required
- Ideal for prototype, rework and small-scale production
The FS BONDTEC 5310 Ball-Wedge Bonder is part of F&S Bondtec’s 53xx Series, purpose-built to process gold wires from 17.5 to 50 μm using both bumping mode and stitchbond mode. Its motor-driven Z-axis ensures consistently repeatable results, while every bonding parameter can be saved to the internal hard disk for future recall.
Designed with ease of use in mind, the 5310 Ball-Wedge Bonder features a colour display and shuttle-wheel input that simplify machine programming, allowing operators to create a variety of loop shapes through its manipulator system. This straightforward handling means operators require only minimal training, making the 5310 Ball-Wedge Bonder an ideal choice for prototype development, rework and small-scale production runs.
Suited to complex bonding tasks that demand optimal quality at a favourable price point, the 5310 Ball-Wedge Bonder combines precision hardware with intuitive manual control, making it a dependable option wherever repeatable, high-quality gold-ball bonding is required without the overhead of a fully automatic system.
Bond System
| Attribute | Detail |
|---|---|
| Wire types | Gold wire 17.5–50μm on 2″ spool |

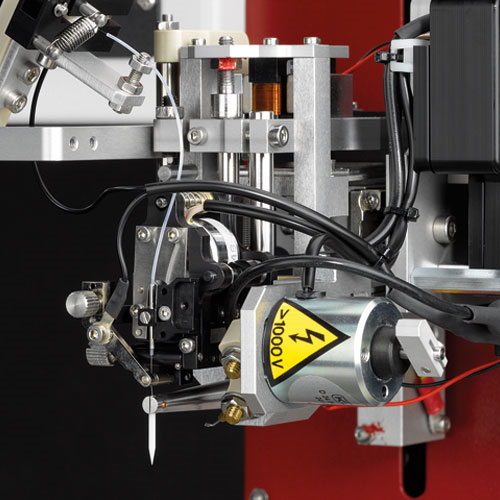

| Bondhead | Ball-Wedge for Gold wire, standard capillaries 16mm (optional 19mm) |
| Ultrasonic System | F&S Generator 67kHz (optional 120, 130, 140kHz) |
Bonder Base
| Attribute | Detail |
|---|---|
| Axes | Programmable linear Z-axis with 60mm stroke, 1μm step resolution, standard working height 55mm, manipulator in X and Y 18x18mm, equivalent to 1:7 |
| Hardware | Stepper motor driven Z-linear axis, single-board PC, coin-guided teach-in, internal hard disk, menu-guided operation via shuttle wheel with confirmation button |
| Software | Programmable single bonds, loop shapes can be saved |
| Control | Manual |
| Dimensions | W x D x H – 63 x 58 x 40cm, weight approx. 30kg |
| Connections | 100–230 VAC, 1 Phase, 50/60Hz, max 230VA, Ø6mm standard-vacuum tubing |
| Heater controller | Integrated in the machine, 0–250°C |
Workholder
| Type | Detail |
|---|---|
| Standard | Ø80mm workholder with mechanical clamping |
| Optional – Large parts | Workholder for parts up to 4×4″ with vacuum and mechanical clamping |
| Optional – TO | TO workholder with mechanical clamping |
| Optional – Rubbered | 4×4″ workholder with rubbered surface and mechanical clamping |
