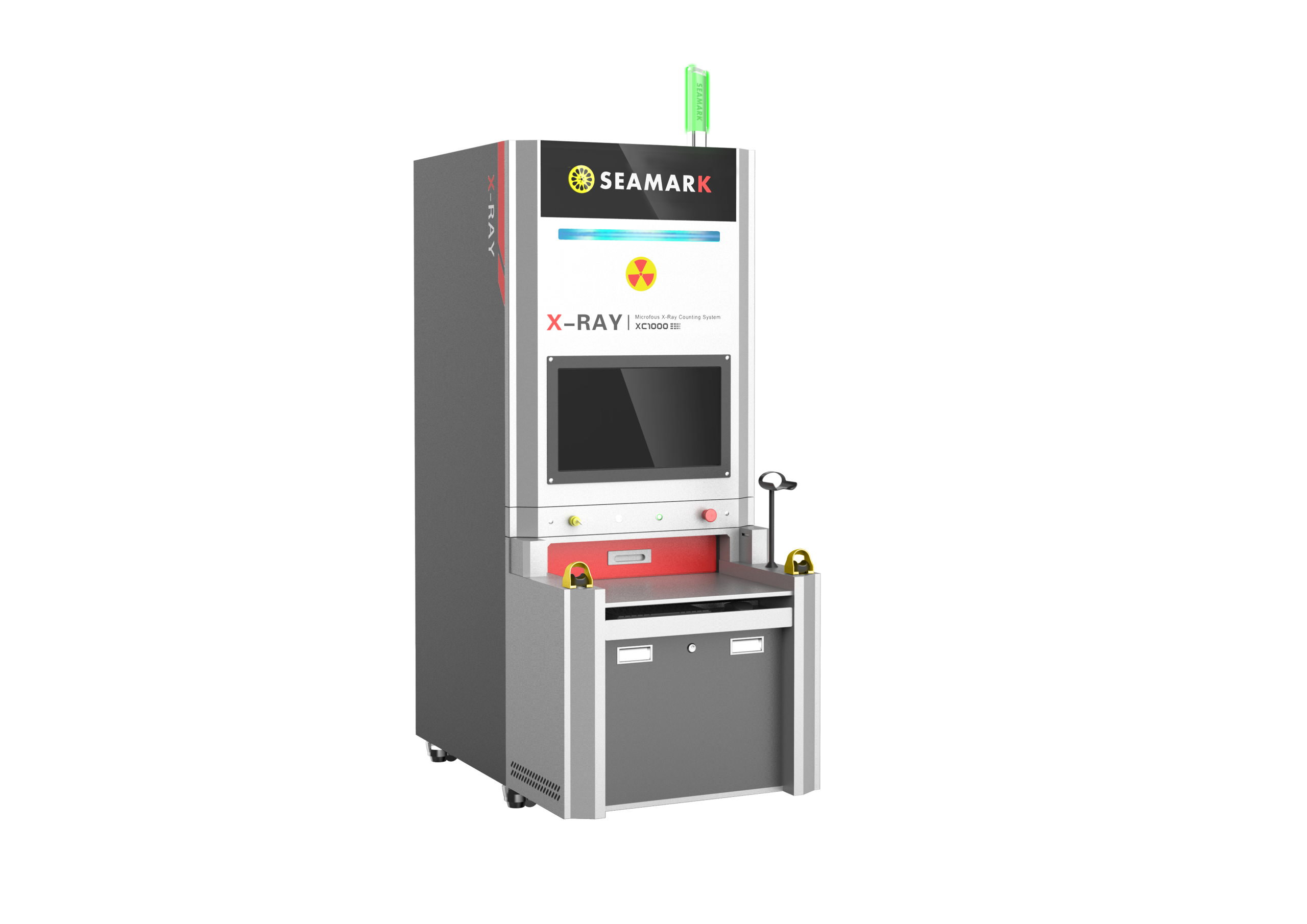

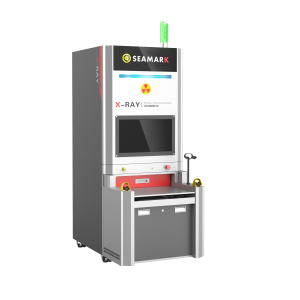

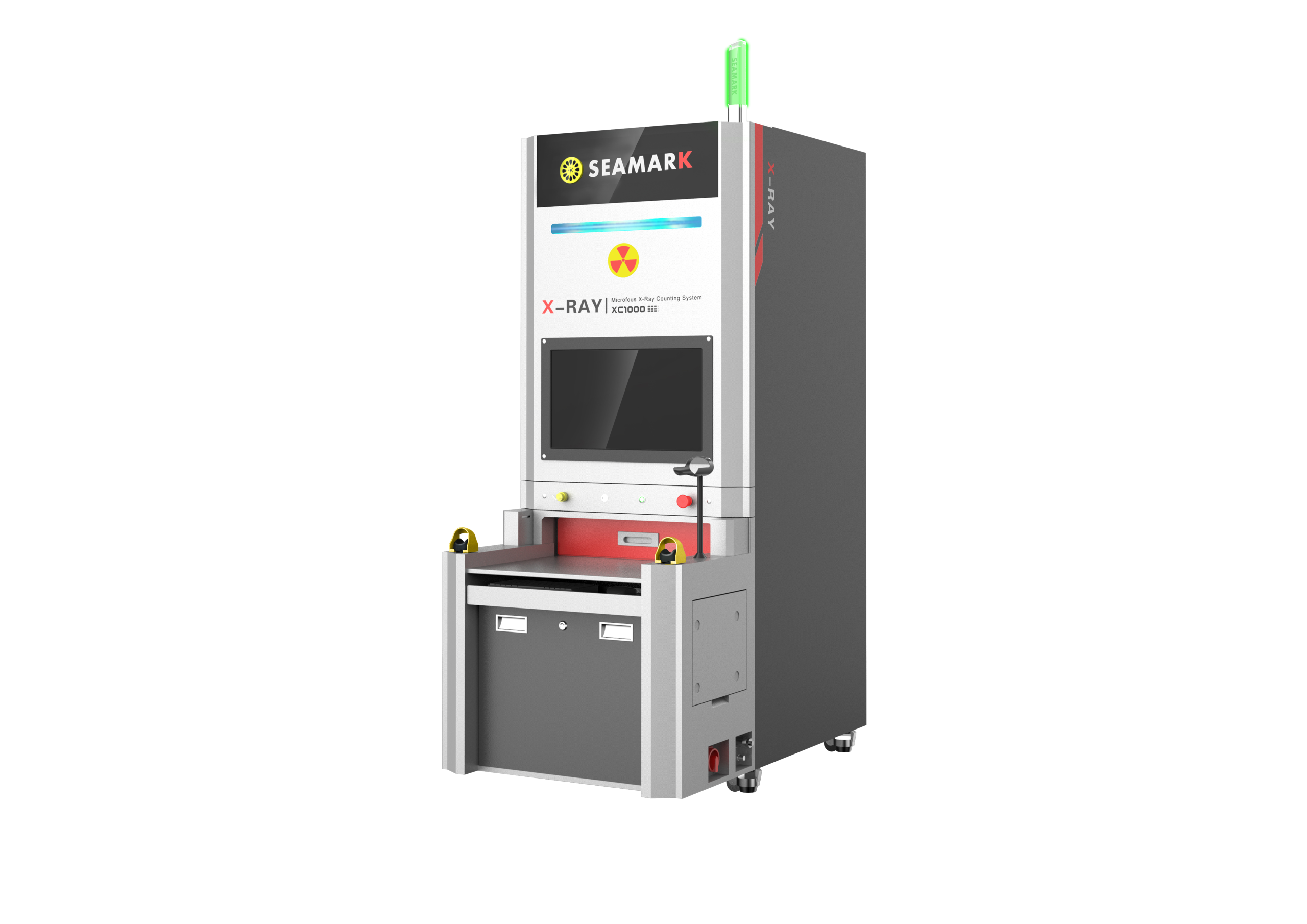

The Seamark XC1000 is a high-speed, X-ray-based component counter designed to transform SMT inventory management. Because it uses AI-driven image recognition, the XC1000 counts up to four 7″ to 15″ reels simultaneously, down to 01005 component size, with 99.99% accuracy and no unspooling required. As a result, operators can verify stock levels without ever opening a sealed reel, moisture-proof bag, or JEDEC tray. OnBoard Solutions supplies the XC1000 to Australian electronics manufacturers who need to reconcile physical stock against ERP records without pulling components off the line.
Seamark XC1000 Features
- Counts 1 to 4 reels simultaneously without unspooling
- 99.99% counting accuracy for components sized 01005 and above
- Reads reels from 7″ to 15″ and heights from 5mm to 80mm
- Amorphous silicon flat panel detector with a 430mm x 430mm field of view
- Automatically prints error-proof labels via an integrated TSC printer
- Connects directly to MES, ERP, and WMS systems for real-time data exchange
- Anti-pinch safety design protects operators during automated reel handling
- Compact, mobile design with built-in wheels and an ergonomic workstation
Applications
This counter suits high-mix, low-volume manufacturers who need absolute certainty in their material stock levels. Consequently, production lines rarely stop for inaccurate inventory counts, and component damage from manual handling drops significantly. Because the system requires no unspooling or manual counting, it also reduces the risk of component damage and electrostatic discharge during handling. Additionally, the XC1000 draws on a global database of more than 15,000 material profiles, so it recognises the vast majority of components without local training. For teams that also need full internal defect inspection rather than counting, the Seamark X6600 Offline X-Ray Inspection Machine is a natural complement. For full technical specifications, see the manufacturer’s product page.
Overall, the Seamark XC1000 gives SMT manufacturers a fast, reliable way to keep ERP and MES inventory records accurate without unpacking a single reel.
