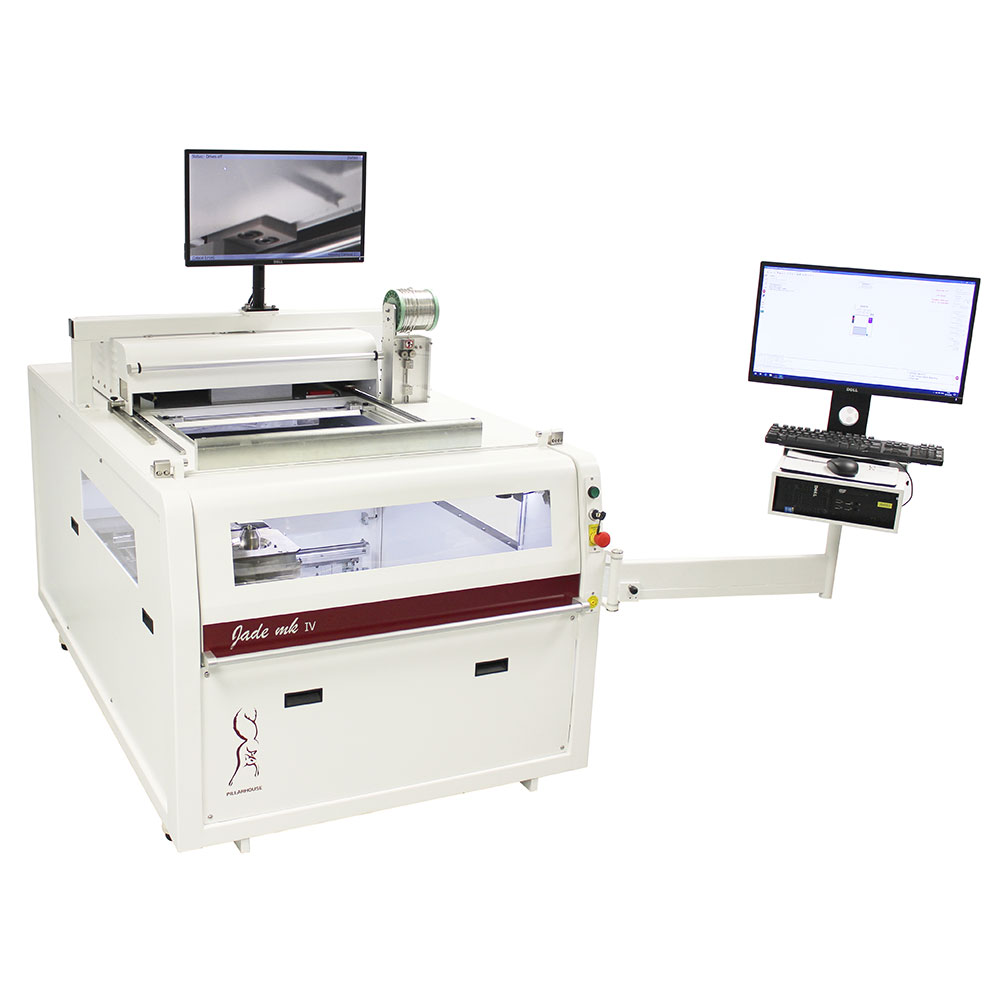

The Pillarhouse Jade MKIV is a globally recognised, high-precision selective soldering system. It is designed for manufacturers who need excellent solder joint quality on complex through-hole assemblies.

Key Features of the Jade MKIV Selective Soldering System

• Drop-Jet fluxing technology
• Nitrogen-inerted solder bath
• Perfect for automotive and aerospace

Clean, Controlled Soldering

The system uses patented Drop-Jet fluxing technology. In addition, a dedicated nitrogen-inerted solder bath keeps the soldering environment pure.

As a result, you get consistent, high-quality joints from one board to the next.

Flexible Nozzle Options

The Jade MKIV uses a single-point solder nozzle that is easy to swap. This means you can quickly adapt to boards with different component densities.

Fast Offline Programming

Its software allows rapid offline programming. So engineers can define precise solder paths and dwell times for every joint without stopping production.

Built for Accuracy

A robust mechanical gantry works together with high-accuracy motion control. Together, they deliver repeatable results on every run.

Why Choose This Selective Soldering System?

The Jade MKIV is a leading solution for high-reliability sectors such as automotive and aerospace. For example, it is ideal where component density or thermal sensitivity rules out traditional wave soldering.

Because it solders each joint individually, it also protects nearby sensitive parts. That gives you more control over quality on your most demanding boards.

Explore our full range of selective soldering equipment to find the right system for your line.
