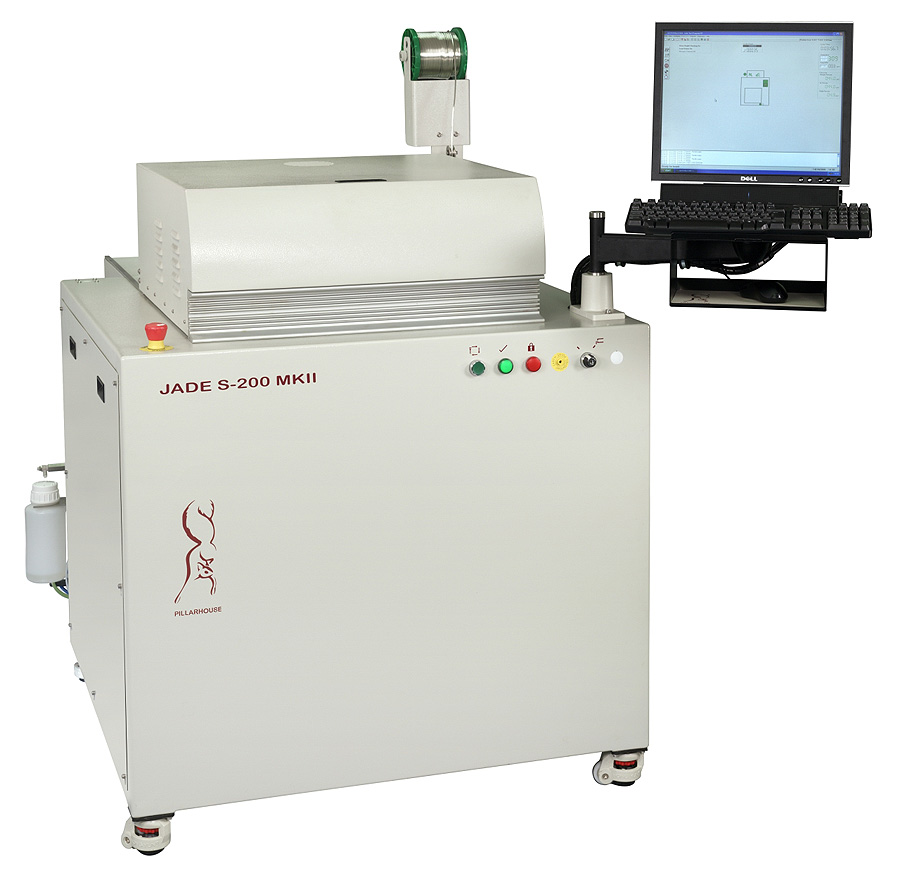

The Pillarhouse Jade MK-II is an industry-leading, entry-level selective soldering system. It suits small to medium batch manufacturers who need top soldering quality and high flexibility.

Key Features of the Pillarhouse Jade MK-II

• Boards up to 457 x 508mm
• Patented Drop-Jet fluxer
• Perfect for small to medium batches

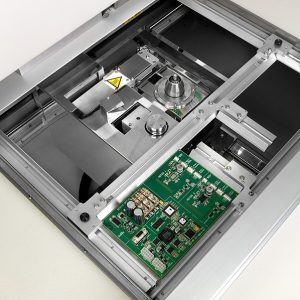

Handles Many Board Sizes

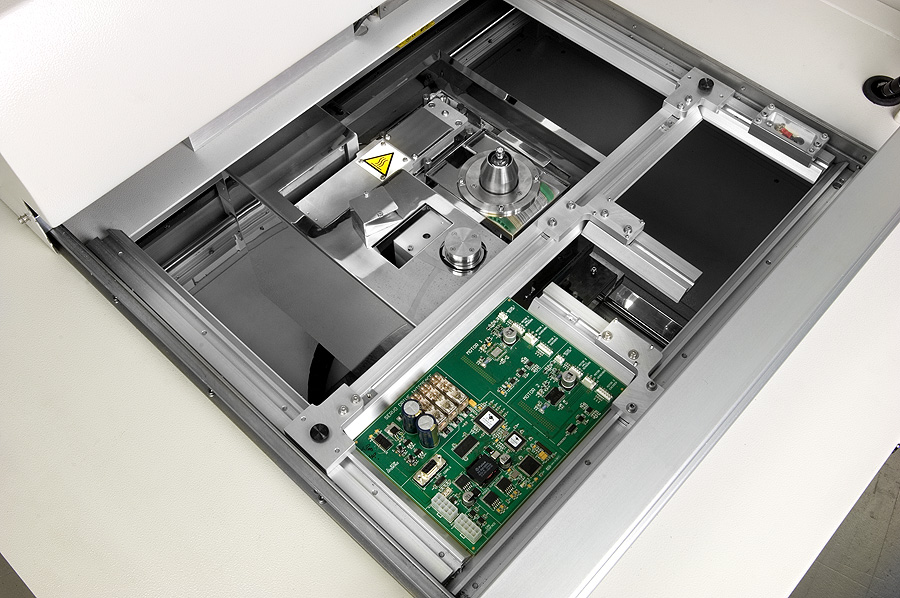

This hand-load system has a universally adjustable tooling carrier. As a result, it takes PCBs or pallets up to 457 x 508mm, so one platform covers a wide range of boards.

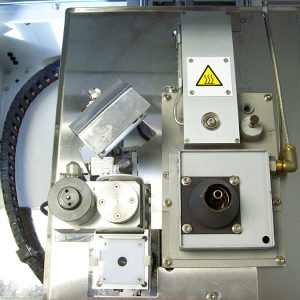

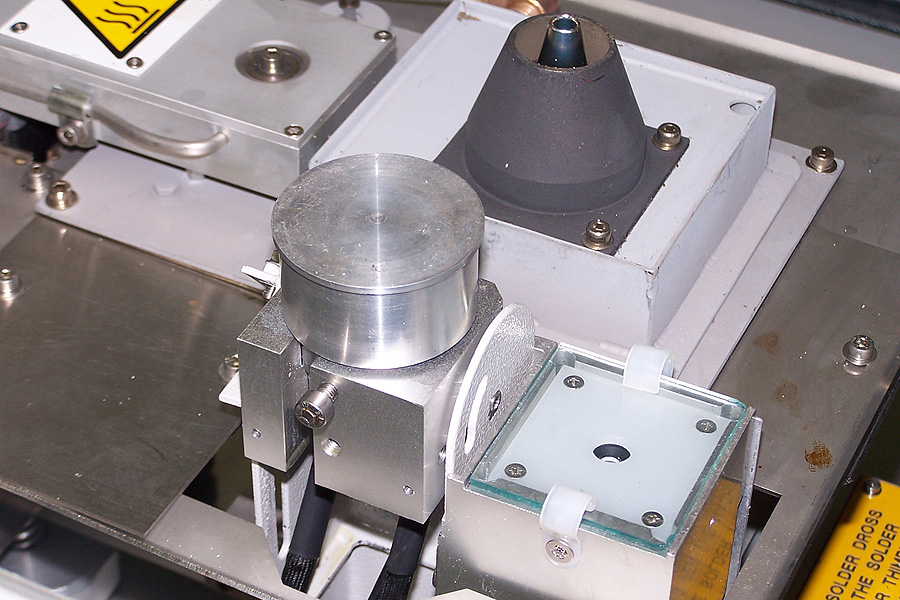

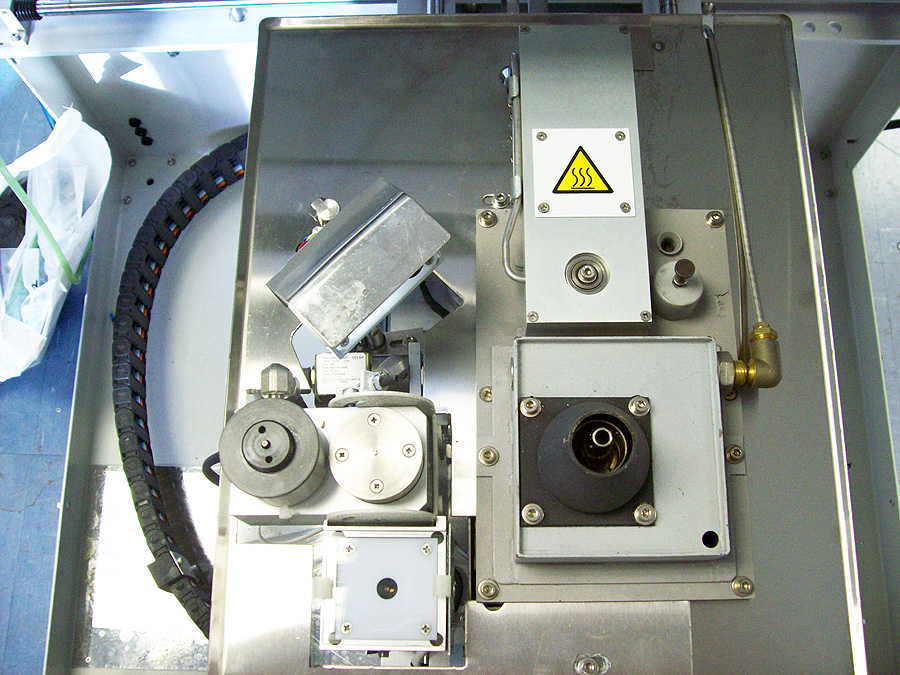

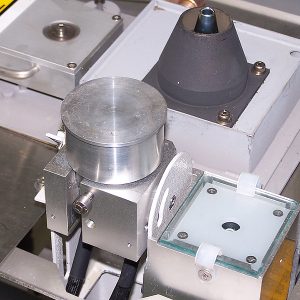

Precise Drop-Jet Fluxing

A key advantage is the patented Drop-Jet design fluxer. It applies flux precisely. In addition, a high-efficiency flushing system cleans the pressurised flux chamber.

Less Maintenance

This flushing system cuts maintenance downtime. Therefore, you can reliably use high-solid content and water-soluble fluxes.

Why Choose the Pillarhouse Jade MK-II?

The Jade MK-II offers high-end selective soldering precision at a low cost of ownership. For example, it is ideal for manufacturers who want to modernise their assembly process.

So you can achieve high-reliability solder joints on complex through-hole assemblies without a large investment.

Because it is hand-loaded, it also suits high-mix work where boards change often. Operators can switch jobs quickly without complex conveyor setups.

Explore our full range of selective soldering equipment to find the right system for your line.
