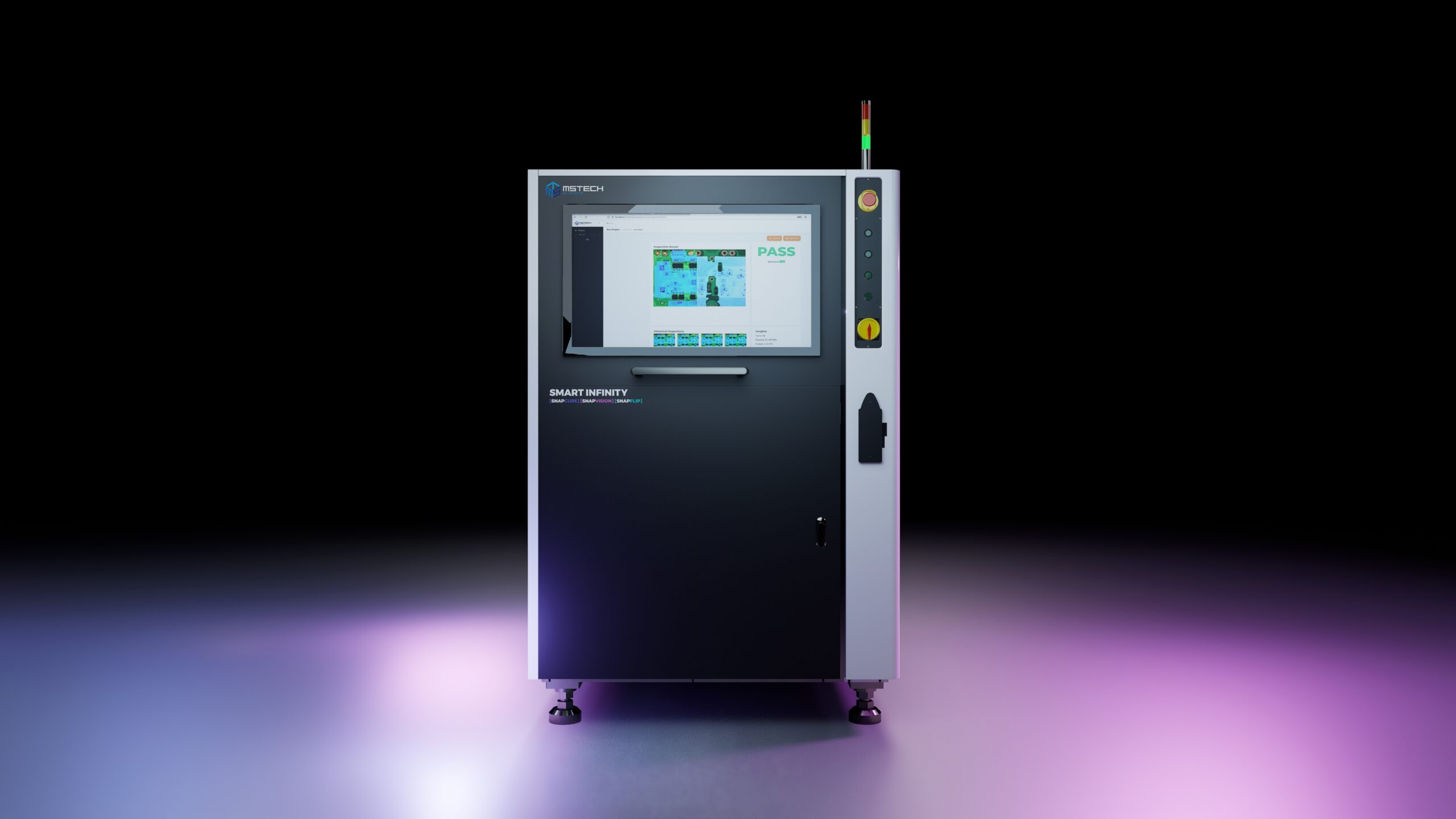

MSTech Smart Infinity Multi Function Platform
A cutting-edge solution for streamlined production processes
New from Europe, the MSTech Smart Infinity Multi Function Platform offers UV curing, inspection and flip function for the bottom side, making this system a unique concept. With its multi-wave UV length curing system, it can adapt to various coatings. Single or dual lane capability for PCB.
MSTech Smart Infinity Multi Function Platform Configurability and Compliance:
- ISO7 (Class 10000) and ESD Level 1 compliant
- CE Certification, SMEMA Compliant, IPC-CFX
- High-resolution multi-type inspection
- 1D/2D barcode reading
- Multi-wave length curing
- Multi-sensors (ESD, humidity, temperature, etc.)
MSTech Smart Infinity Multi Function Platform Productivity and Traceability:
- Inspection time less than 4 seconds
- Curing time approximately 7 seconds
- Less than 2 seconds for flipping
- Process tracker for live parameters log and embedded trend analysis
Optimization:
- Floor space and facility savings
- Energy-efficient and eco-friendly
- Automatic width adjustment, InLet/OutLet shutters
- Conveyor direction L to R (optional R to L)
Features and Options:
- Ionizer for improved cleanliness
- Real-time process monitoring
- Multi-language user interface and documentation

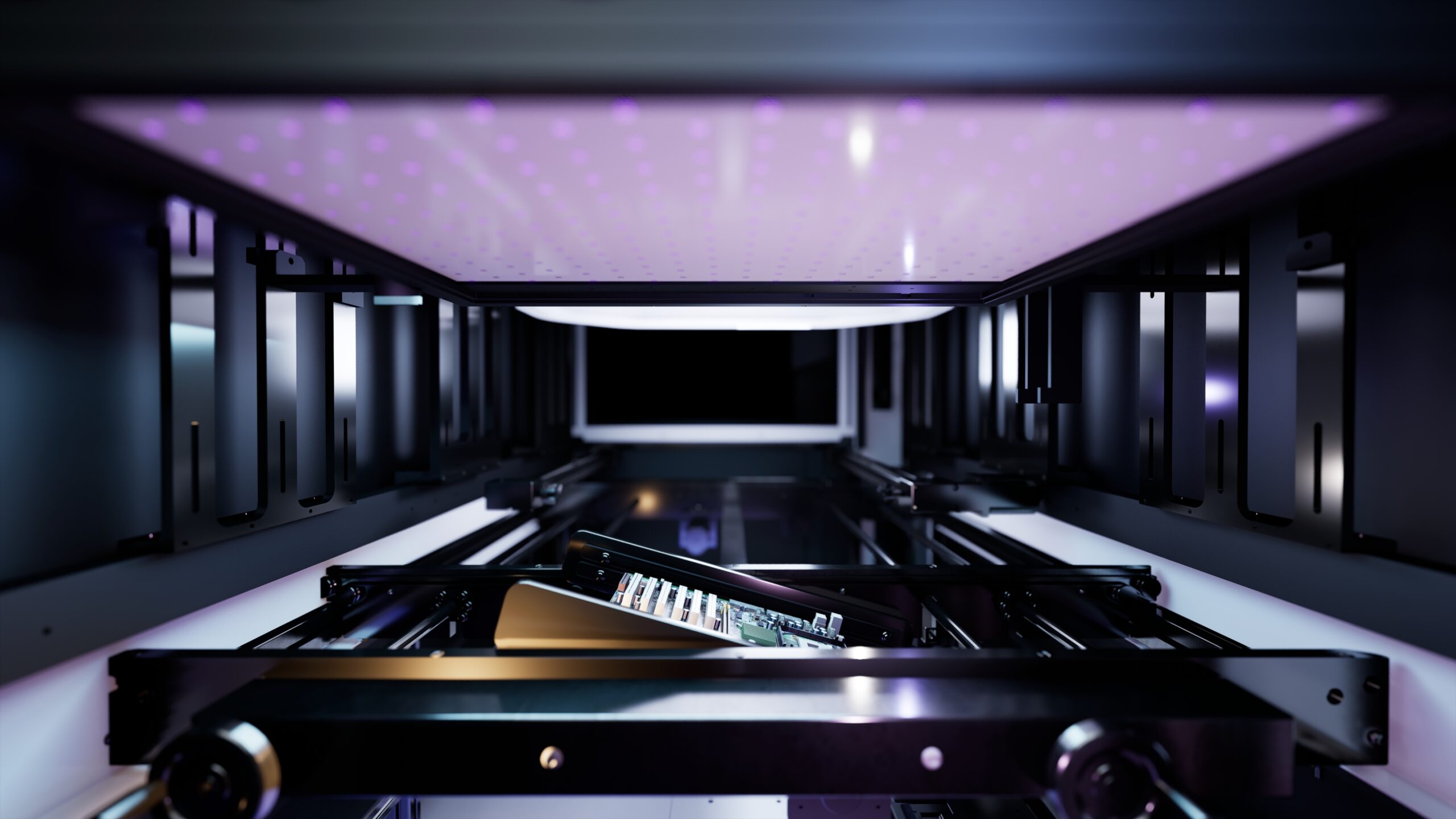

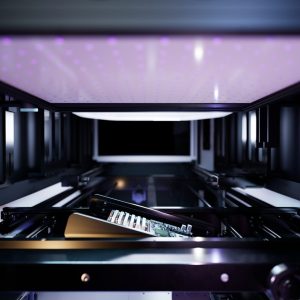

- UV/IR LED Matrix Panel with world’s best efficiency
- Single and dual-lane belt options
- Humidity, temperature, UV wave, and Industry 4.0 integration
- UV/IR LED Matrix Panel with a guaranteed lifetime of 20,000 hours

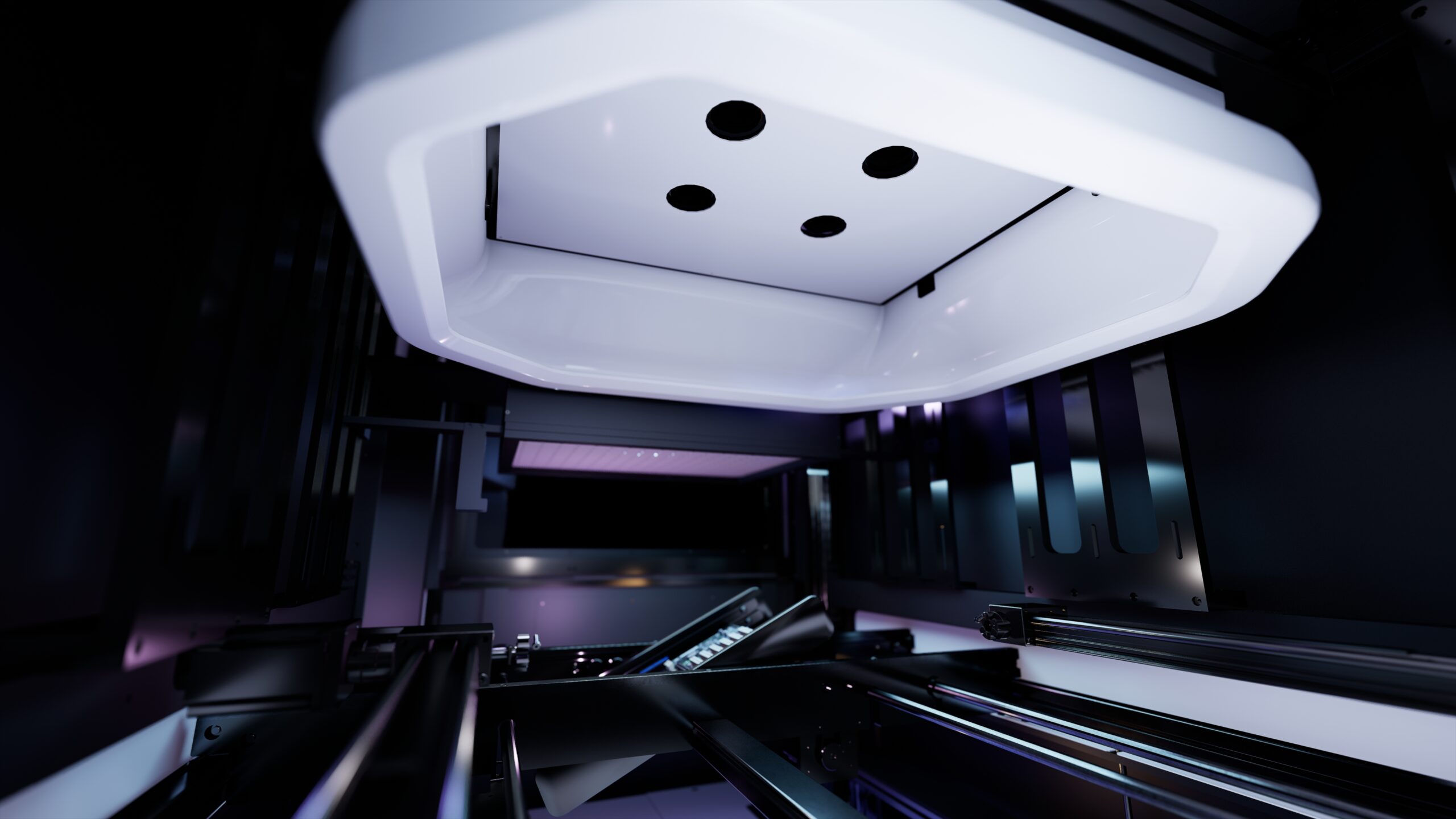

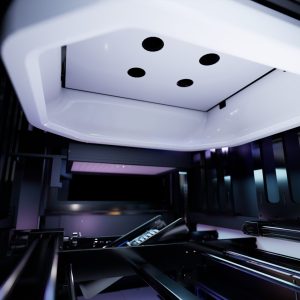

Inspection Unit:
- Resolution down to 40 um
- Standard pallet and PCB size FOV up to 500 x 400 mm
- Intuitive programming UI
- Max inspection time less than 4 seconds per lane
- Ultra-thin coating compatible
- Multi-LED illumination for world’s best productivity
- No periodic calibration of the camera needed
Applications: Suitable for a variety of materials and processes, including underfill, potting, glue, corner bonding, thermal paste, gap filler, coating, nano-coating, screw, top THT, optical bonding, latex, wax, foreign particles, data-matrix, labels, QR, and more.
Experience world-class efficiency and productivity with the MSTech Smart Infinity Multi-Function Platform. Made in accordance with global standards, this platform is your key to a seamless production experience.
