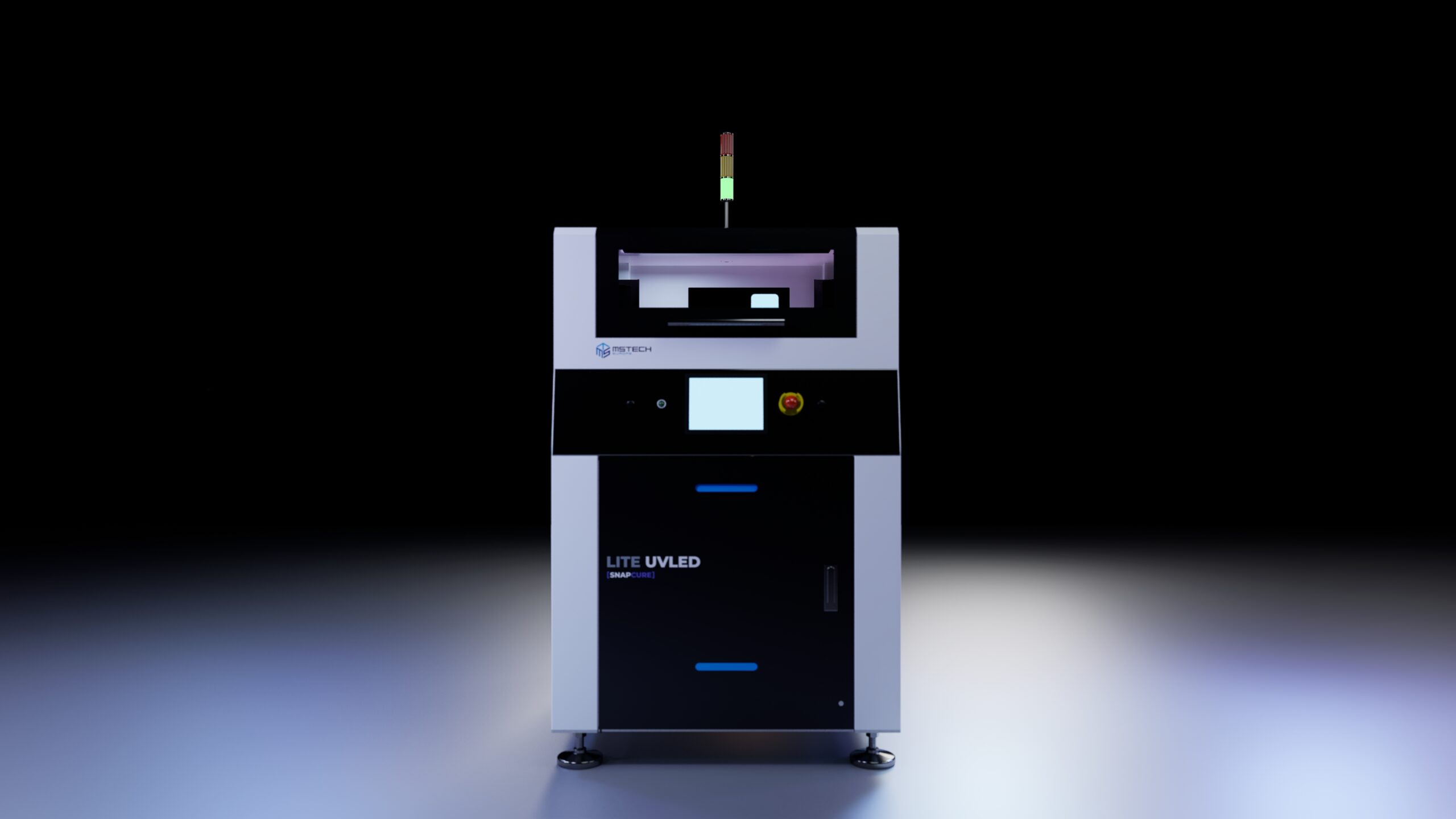

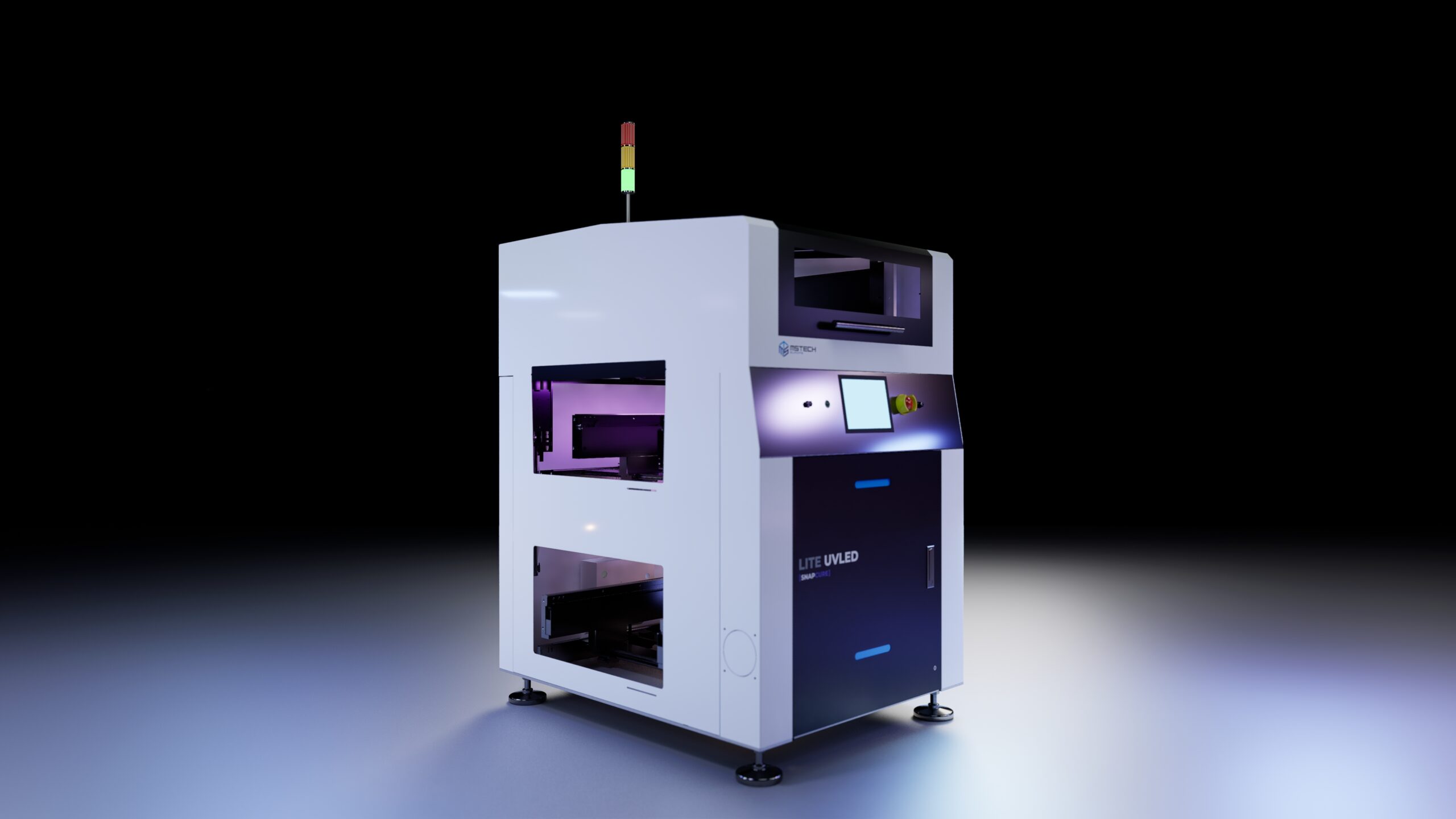

MSTech Lite UVLED Curing System: Advanced UV Conformal Coating Solution
MSTech Europe has just released the MSTech Lite UVLED Curing System for the curing of UV Conformal Coatings. It offers an integrated high-performance LED flat-panel light source. Cures in under 10 seconds! Tailored to diverse production needs, it features a simple yet flexible control system for transport conveyors and a range of built-in options and accessories.
MSTech Lite UVLED Curing System Key Features:
- High-efficiency UV irradiation source using powerful LEDs
- Mono or multi-frequency options (395 nm or 365 nm, 265 nm to 405 nm)
- Integrated programmable forced air cooling over a 500×400 mm² area
- Less than 10 seconds curing time
- High component clearance (<150 mm top and bottom)
- Smartbox option for traceability (Industry 4.0)
- Super-fast curing for enhanced productivity
- Compact design for floor space and energy savings
- Eco-friendly with no infrared radiation
MSTech Lite UVLED Curing System Technical Specifications:
- Electric Power Consumption: 1800 W
- Curing Area: 500×400 mm²
- Power Intensity: 300mW/cm² at 50 mm distance from substrate
- Cooling Method: Fans cooling
- Board Dimensions: Support for panel PCBs and pallets (50 x 50 mm² to 710 mm x 540 mm²)
Advantages:
- Efficient curing of UV-curable materials
- Simple production concept with process stability
- Full board area coverage in one shot
- No additional variables, reflectors, or shadows

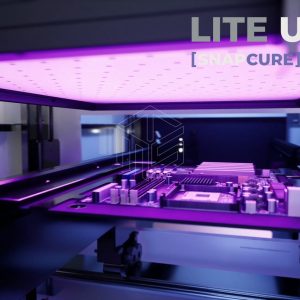

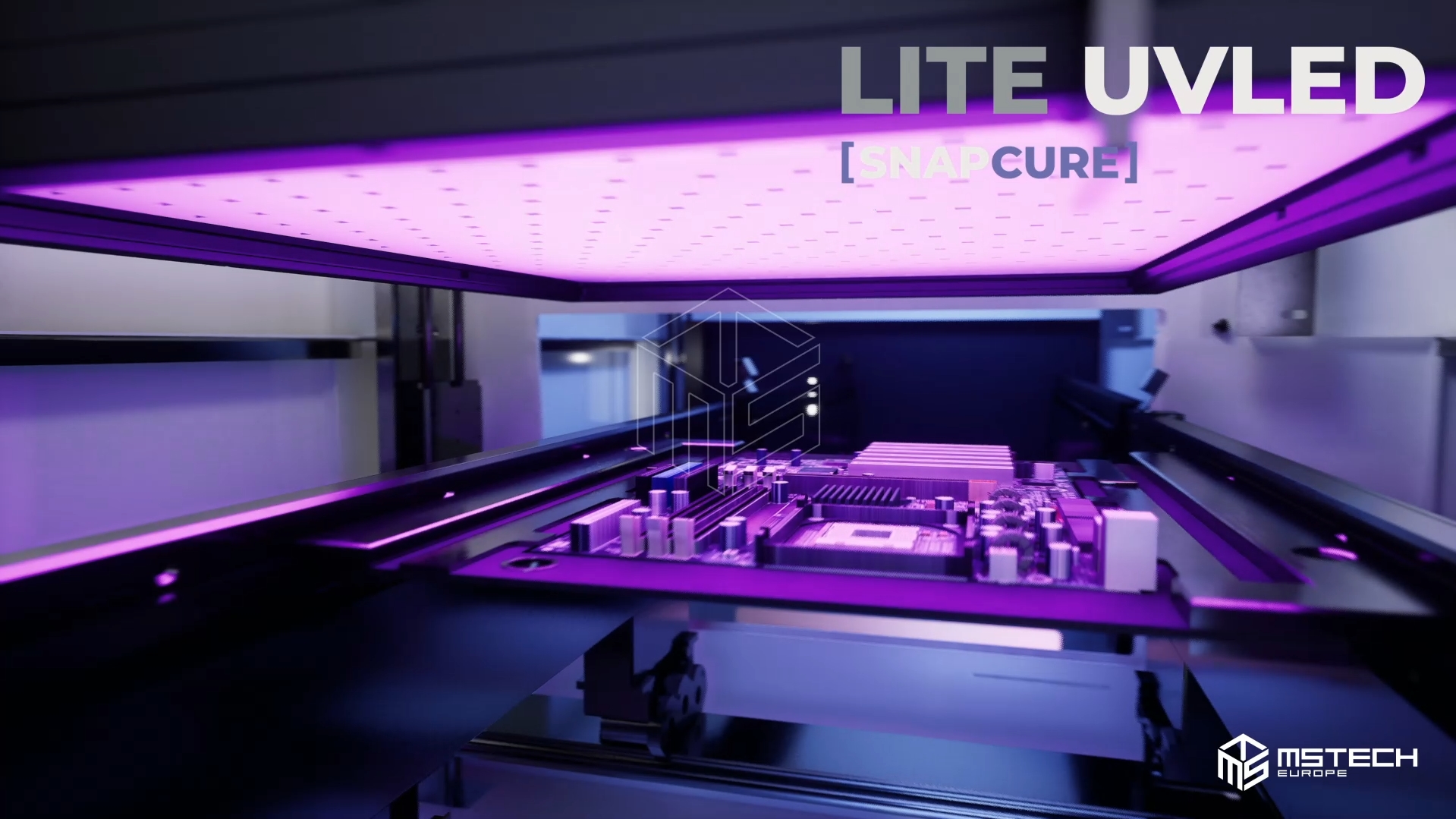

- UV LED irradiation head with powerful LEDs for even coverage
Smartbox Options:
- UV dose monitoring
- ESD impurity sensor
- Humidity and temperature monitoring
- UV wavelength and dose analysis
- Industry 4.0 integration for global network connectivity
