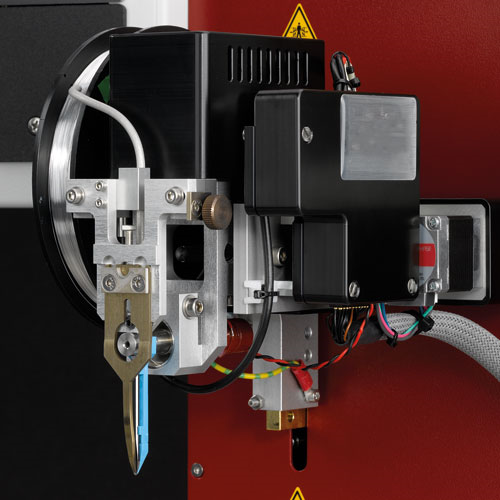

FS BONDTEC 5350HR Heavy Ribbon Wedge-Wedge Bonder
- Processes aluminium ribbons up to 2000×300μm
- Processes copper wire from 300 to 500μm
- Programmable Voice-coil bond force system, 0 up to 1,800cN (amplifiable up to 4,000cN)
- Motor-driven Z-axis for repeatable results, years after installation
- Colour display with shuttle-wheel input for easy programming
- Mechanical manipulator system for creating different loop shapes
- Minimal operator training required
The FS BONDTEC 5350HR Heavy Ribbon Wedge-Wedge Bonder can process aluminium ribbons up to 2000×300μm and copper wire from 300 to 500μm. Thanks to its motor-driven Z-axis, operators always work with repeatable results, with every parameter able to be saved to the internal hard disk for consistent performance even after years of use.
Handling on the FS BONDTEC 5350HR is supported by a colour display and shuttle-wheel input, making machine programming very easy. The operator can create different kinds of loops with the manipulator system, and since operators require only a minimum of training, the 5350HR manual bonder is the ideal choice for prototype work, rework and small scale production.
The FS BONDTEC 5350HR is perfectly suited for complex bonding tasks, delivering optimal quality at the most favourable price. This makes it the right choice for demanding heavy ribbon and heavy wire bonding applications where budget and quality both matter.
Bond System
| Attribute | Detail |
| Wire types | Aluminium ribbons up to 2000×300μm; copper wire 300–500μm on 4″ spool |
| Bondhead | Wedge-Wedge for ribbons, standard tool length 2″, motorized wire spool (optional), programmable Voice-coil bond force system from 0 up to 1,800cN (amplifiable up to 4,000cN) |
| Ultrasonic System | F&S Generator 58kHz (optional 40, 90, 120kHz) |
Bonder Base
| Attribute | Detail |
| Axes | Programmable linear Z-axis with 60mm stroke, programmable linear Y-axis with 20mm stroke, standard working height 55mm, manipulator in X and Y 18x18mm, equivalent to 1:7 |
| Hardware | Stepper motor driven Z-linear axis, single-board PC, coin-guided teach-in, internal hard disk, menu-guided operation via shuttle wheel with confirmation button |
| Software | Programmable single bonds, loop shapes can be saved |
