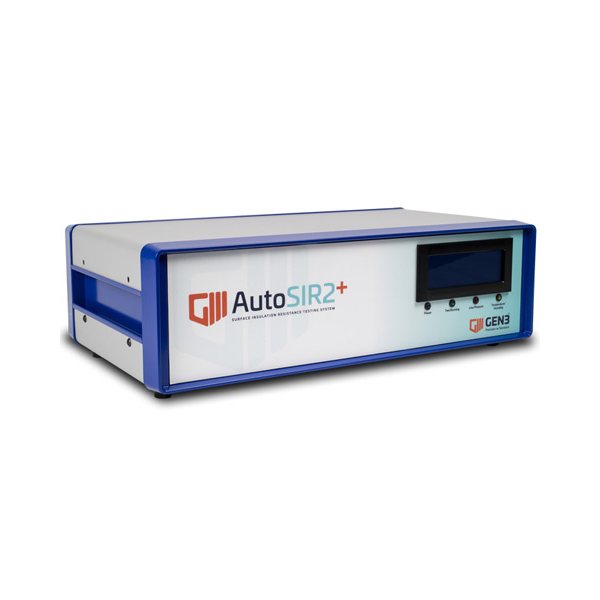

- Surface Insulation Resistance (SIR) tester for evaluating printed circuit board reliability
- Recognized as the world’s best-selling SIR tester, trusted for reliability and precision
- Available in 64, 128, or 256 channel configurations
- Wide measurement range of 10⁶ Ω to 10¹⁴ Ω
- All 256 channels measured in under 30 seconds, optimized at <100ms per channel
- Multi-bias capability applies up to three different bias voltages simultaneously in a single test
- Internal bias voltage from 0V up to ±100V; external bias expandable to 1V–1250V
- Fully selectable test intervals from a minimum of 1 minute, with unlimited maximum test duration
- Continuous measurement on all selected channels, with fully shielded measuring cables
- Detects moisture ingress, contamination, and Conductive Anodic Filament (CAF) failures
- Provides objective evidence for IPC-J-STD-001 compliance and tests to IPC, IEC, and JNC specifications
- Supports parallel PCB testing for increased throughput and real-time trend analysis
- Compatible with Windows 10 and above (64-bit)
- Compatible coupons: IPC B24, B25, B25A, B52, B53
- Includes IEC mains lead, USB mains, humidity probe, bias lead, 2x bias power supply plugs, 1-amp fuse, and manual flash drive
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 64, 128, or 256 |
| Measurement Range | 10⁶ Ω to 10¹⁴ Ω |
| Internal Bias Voltage | 0V, 3.3V, 5V, 10V, 12.5V, 15V, ±50V, ±100V |
| External Bias Voltage | 1V–100V (free selection); 1V–1250V (external) |
| Measurement Speed | <100ms per channel |
| All-Channel (256) Measurement Time | <30 seconds |
| Test Intervals | Selectable from 1 minute minimum |
| Maximum Test Duration | Unlimited |
| Measurement Method | Continuous on all selected channels |
| Weight | 17 kg (37.5 lbs) |
| Dimensions | 52 x 34 x 17 cm |
| Power Requirement | 120V/230V, 50/60Hz, switchable single phase |
| Operating System | Windows 10 onwards (64-bit) |
| Measuring Cable | Fully shielded |
| Data Collected | Sampling time, elapsed time, resistance, current, applied voltage, temperature, humidity |
| Compatible Coupons | IPC B24, B25, B25A, B52, B53 |
| Applicable Standards | IPC, IEC, JNC |
| Compliance | IPC-J-STD-001 objective evidence |
