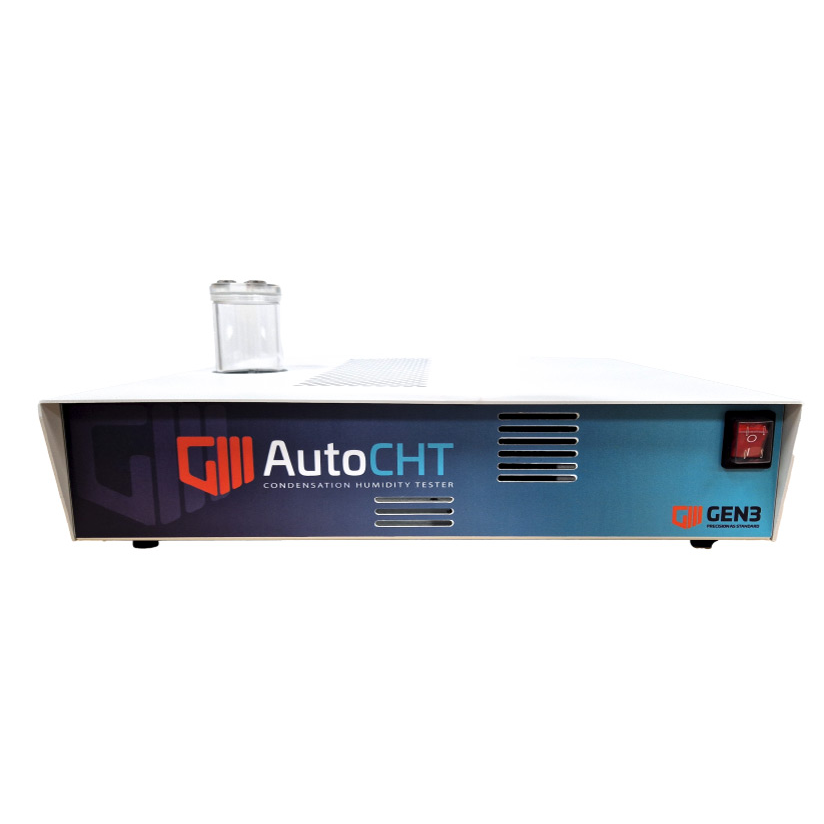

- World’s first platen-based condensation tester, generating a controlled condensation layer on electronic test boards
- Simulates localized condensation during Damp Heat Testing (DHT) by independently adjusting test board temperature
- Precision temperature control in 0.1°C increments, maintaining board temperature at least 1°C below dew point
- Platen temperature range of 36°C to 43°C
- Accommodates up to 3 test boards mounted at a 45° angle using magnetic coupon holders
- 16 channels per board, 48 channels total
- Retrofittable into existing DHT chambers (nominal 40°C/90% RH)
- Customizable temperature cycles and profiles
- Fully integrated with the AutoSIR2+ system via passthrough cabling, controlled by a single unified software
- Delivers condensation test results in less than 1 day, versus a minimum of 7 days for traditional SIR testing
- Detects conformal coating failures, edge coverage defects, and electrochemical migration (ECM) risks from poor coating coverage
- Evaluates the impact of layout spacing on moisture vulnerability
- Ideal for R&D, QA, and accelerated aging assessments
Technical Specifications
| Specification | Value |
|---|---|
| Device Dimensions (H x W x D) | 184mm x 456mm x 463mm |
| Platen Dimensions (H x W x D) | 189mm x 402mm x 168mm |
| Weight | 8 kg |
| Platen Temperature Range | 36°C to 43°C |
| Temperature Adjustment Step | 0.1°C, to at least 1°C below dew point |
| Chamber Requirements | Nominal 40°C / 90% RH |
| Operating Environment | 18°C – 26°C |
| Power Requirement | 120/230V, 50–60Hz, 636W (max) |
| Test Board Capacity | Up to 3 boards, at 45° angle |
| Channels | 16 per board (48 total) |
| System Integration | AutoSIR2+ App, via passthrough cabling |
| Mounting | Magnetic coupon mounting system |
