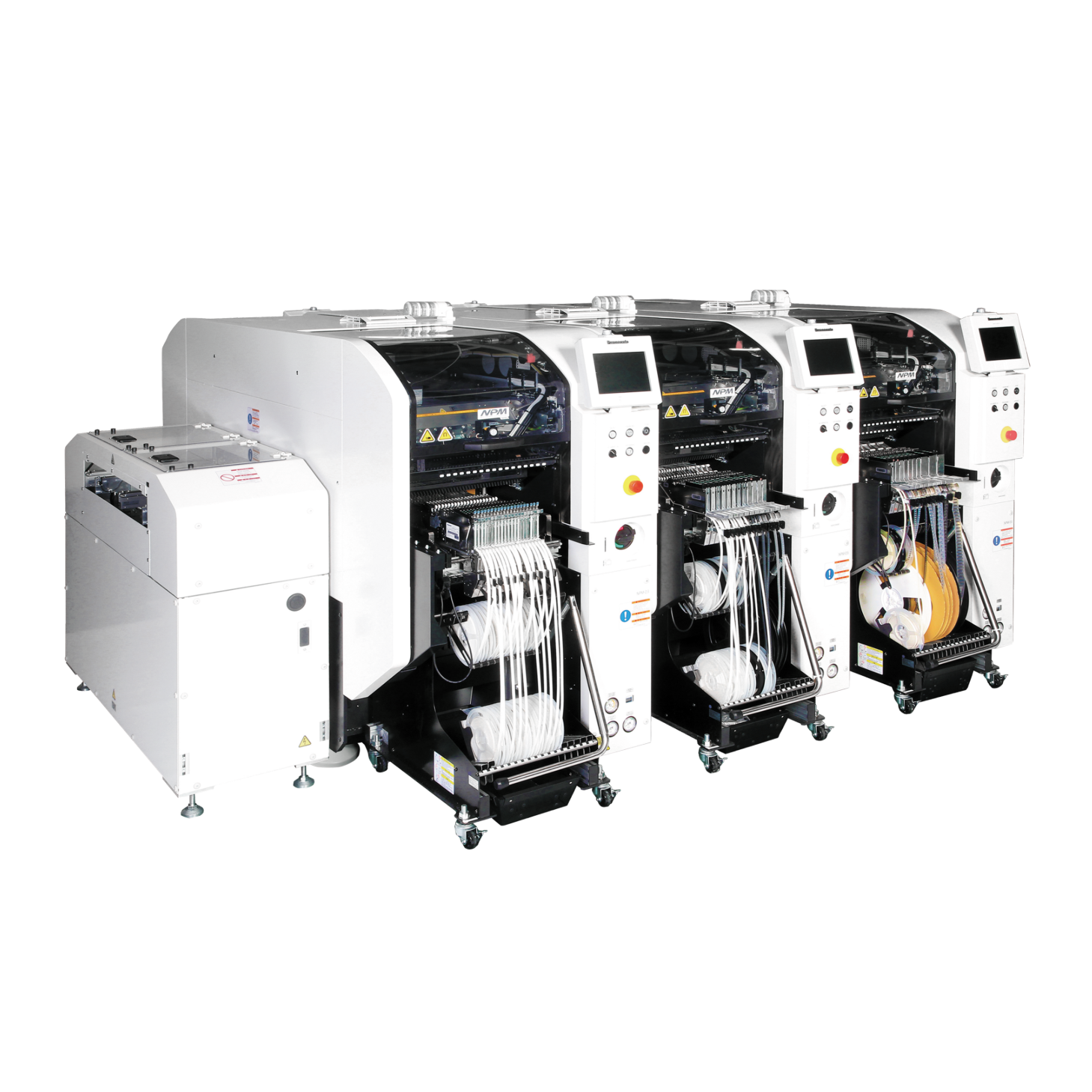

NPM-D3A Production Modular

• Dual placement method for fully independent placement
• Improved basic performance for high-speed, high-precision placement
• Lightweight 16 nozzle head V3A
• Multi-recognition camera and high-rigidity frame
• 2-head machine configuration, combinable with 17-slot cart and tray feeder
• APC-5M process control for stable operation and predictive maintenance
• Auto Setting Feeder (ASF) automates component supply operations

The NPM-D3A is a production modular built for high-speed, high-precision mounting. By adopting the lightweight 16 nozzle head V3A, a multi-recognition camera, and a high-rigidity frame, the NPM-D3A simultaneously achieves improved area productivity and high-precision placement. Its dual placement method allows for fully independent placement, while the machine configuration is 2-head, with the components supply section able to be combined with a 17-slot cart and tray feeder.

To prevent mounting defects due to component setting errors, the NPM-D3A includes a built-in LCR checker, which measures the electrical characteristics of components before placement. Stable measurement is achieved by holding the component’s posture and position with an adhesive material, while pressing down with a metal lever enables highly accurate measurement regardless of the nozzle used.

To maximize Overall Equipment Effectiveness (O.E.E.), the optional APC-5M system monitors and analyses unit conditions in real time, enabling predictive maintenance and reducing errors from unmaintained equipment. The NPM-D3A also integrates with inspection machines through the APC System (APC-FF/APC-MFB2) for variation control in solder printing and component placement. Skill-less, labour-saving features include remote error recovery operation and AOI information display directly on the machine screen when quality errors occur, helping reduce dependence on specific workers and improve productivity.

Main Specifications
