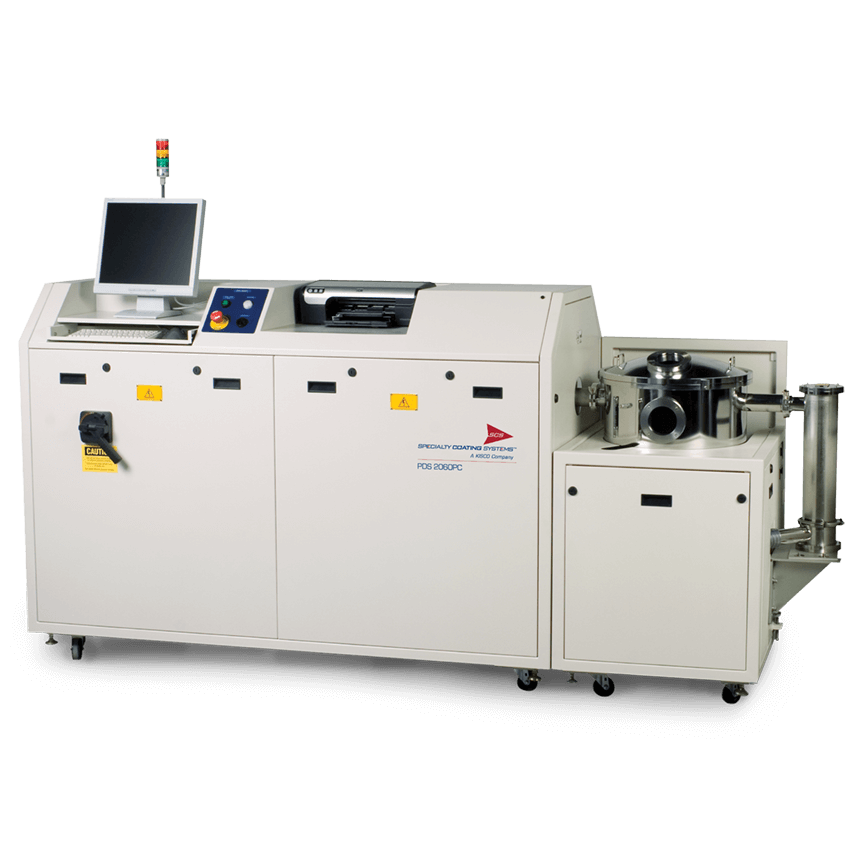

The SCS PDS 2060PC is a production-grade Parylene deposition system from Specialty Coating Systems (SCS), engineered for precise, high-quality conformal coatings at production scale. Because the system applies coatings at ambient temperature through molecular-level polymer deposition, it protects sensitive electronic assemblies without the thermal stress of other coating methods. For a closer look at how the process works, see our guide on how a Parylene deposition system works.
SCS PDS 2060PC Features
- Production-grade Parylene deposition system for precise, high-quality conformal coatings
- Applies coatings at ambient temperatures through molecular-level polymer deposition
- Proprietary software enables control of both coating rate and ultimate film thickness
- Windows-based operating system with user-configurable operating parameters
- Real-time temperature and pressure data collection
- Battery backup for safe system shut-down procedures
- Automated vaporizer and pump valve control
- Available in vertical and horizontal chamber configurations
- NFPA-79 and CE compliant
- Optional vacuum pump exhaust filtration
- Optional cascade refrigeration system with cold probe temperature sensor
- Optional automatic liquid nitrogen management
- Optional tumble coating functionality
Proprietary software on the SCS PDS 2060PC controls both coating rate and ultimate film thickness, running on a Windows-based operating system with user-configurable parameters. In addition, the system collects real-time temperature and pressure data in real time and includes battery backup for safe shut-down, while automated vaporizer and pump valve control keeps the process consistent from batch to batch.
SCS PDS 2060PC Configurations
The SCS PDS 2060PC is available in vertical and horizontal chamber configurations, and it is NFPA-79 and CE compliant for safe use in production environments. Several options extend the system further, including vacuum pump exhaust filtration, a cascade refrigeration system with a cold probe temperature sensor, automatic liquid nitrogen management and tumble coating functionality.
Specifications
Detailed technical specifications for the SCS PDS 2060PC, including chamber dimensions, deposition rate, vacuum levels and batch capacity, are not published; instead, SCS makes them available upon request. Contact the SCS Parylene technology team at +1.317.244.1200 or via their online contact form to request a quote and full spec sheet.
Looking for a smaller-scale option? Explore the SCS Parylene Deposition System (PDS) Coater, or browse our full range of Parylene Coating systems.
