FS BONDTEC 5850HR Heavy-Ribbon Wedge Bonder
- Heavy Ribbon wedge-wedge version of the fully automatic Series 58xx wire bonders
- Exchangeable bond heads
- Fully automatic mode, ideally suited for medium-scale production
- Parts fed manually, bonds produced completely without operator influence
- Built-in pattern recognition for single bonds made within seconds
- Perfect for R&D, pilot manufacturing and middle volume production
The FS BONDTEC 5850HR Heavy-Ribbon Wedge Bonder is the Heavy Ribbon Wedge-Wedge version of the automatic wire bonders in the Series 58xx, featuring exchangeable bond heads. Its fully automatic mode makes the FS BONDTEC 5850HR ideally suited for medium-scale production — parts to be bonded are fed manually by the operator, but the bonds themselves are produced completely without operator influence.
Thanks to built-in pattern recognition, single bonds can be made within seconds on the FS BONDTEC 5850HR, making the machine perfect for R&D, pilot manufacturing and middle volume production environments that need consistent, high-quality heavy ribbon bonds at speed.
Bond System
| Attribute | Detail |
|---|---|
| Wire types | Aluminium ribbon up to 2000×300μm; copper wire 300–500μm on 4″ spool |

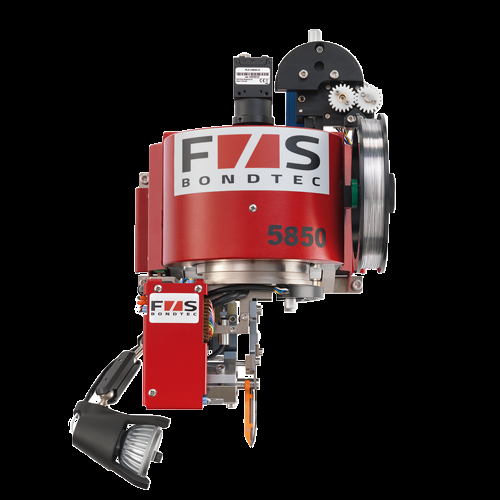

| Bondhead | Wedge-Wedge for heavy wire, standard wedges of 2″ length (optionally 90mm), motorized wire spool (optional), programmable Voice-coil bond force system 0 up to 1,800cN (amplifiable up to 4,000cN) |
| Ultrasonic System | F&S Generator 60kHz (optional 40, 90, 120kHz) |
Bonder Base
| Attribute | Detail |
|---|---|
| Axes | Working area X/Y-axis 200 x 150mm, programmable step resolution 1μm, programmable Z-axis with 100mm stroke |
| Hardware | Dual-Core PC with Windows OS, Ethernet, USB 2.0/3.0, colour display 22″, GigE-CCD-Color camera (5 Mpixel), fully networkable in TCP/IP servers |
| Software | From single bonds up to complex programmes, loop shapes can be stored in libraries, optional pattern recognition |
| Control | High-performance embedded ARM-System with real-time operating system for precision, 1 wire/second |
| Dimensions | W x D x H – 92 x 71 x 65cm, weight approx. 80kg |
| Connections | 100–240 VAC, 1 Phase, 50/60Hz, max 230VA, Ø6mm standard vacuum tubing |
| Heater controller | Integrated in the machine, 0–250°C |
Workholder
| Type | Detail |
|---|---|
| Standard | Workholder for parts up to 8×6″ with vacuum and mechanical clamping |
| Optional – 6×6″ | 6×6″ workholder with vacuum and mechanical clamping |
| Optional – TO | TO workholder with mechanical clamping |
| Optional – Rubberized | 4×4″ workholder with rubberized surface and mechanical clamping |
