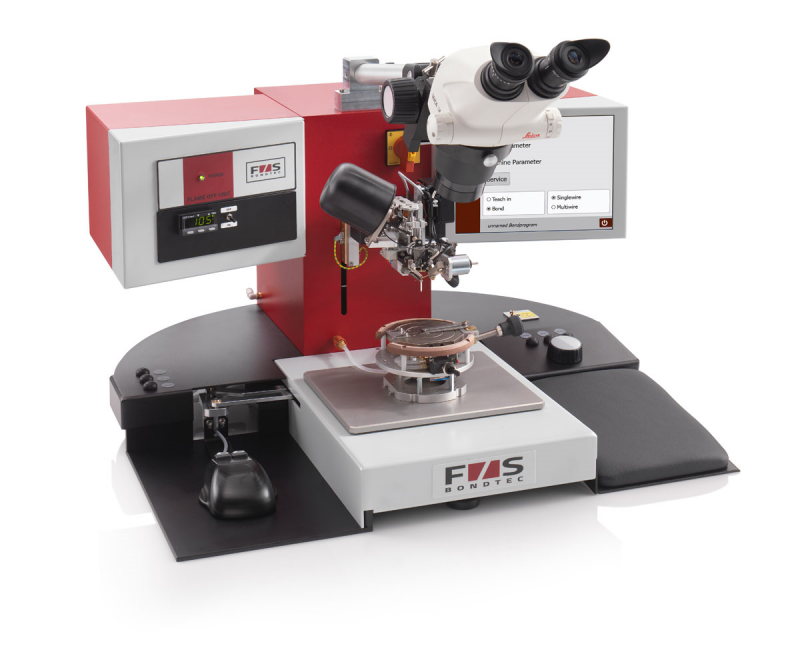

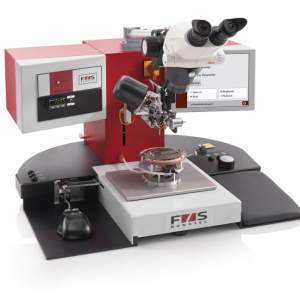

The FS BONDTEC 5330 is a manual thin wire bonder with a wedge-wedge bondhead. It processes aluminium and gold wires from 17.5 to 75μm.
- Processes aluminium and gold wires from 17.5 to 75μm
- Ribbon bonding up to 250μm width via clamp
- Mechanical manipulator system for creating different loop shapes
- Automatic feed and tail function for user-friendly bonding
- Colour display with shuttle-wheel input for easy programming
- Motor-driven Z-axis for repeatable results
- Minimal operator training required
Wire and Ribbon in One Thin Wire Bonder
Thanks to its clamp, the 5330 also bonds ribbons up to 250μm wide. In addition, the mechanical manipulator lets operators create different loop shapes with ease.
User-Friendly Bondhead

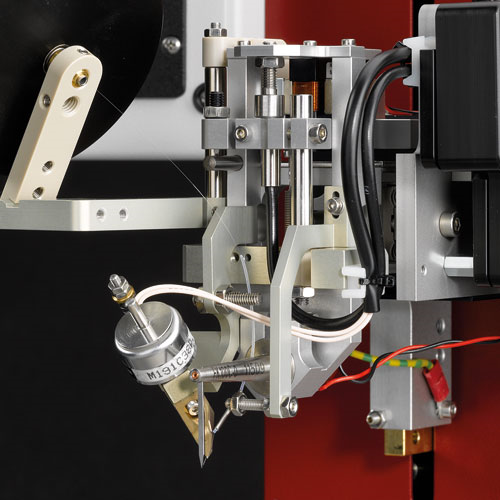

The bondhead has an automatic feed and tail function. As a result, bonding is smooth and user-friendly.
Simple, Repeatable Operation
A colour display and shuttle-wheel input make programming straightforward. Meanwhile, the motor-driven Z-axis gives consistent results, and you can save every parameter to the internal hard disk.
Why Choose This Thin Wire Bonder?
Operators need only minimal training on the 5330. Therefore, it is ideal for small-scale production, lab work, prototyping, pre-series builds and repairs.
For example, one machine can cover both wire and ribbon jobs across your development projects.
Bond System
| Attribute | Detail |
|---|---|
| Wire types | Aluminium and gold wire 17.5–75μm on 2″ spool; ribbon up to 250μm width (optional) |
| Bondhead | Wedge-Wedge for aluminium and gold wire, standard tool 1″ length, 45° wire feed, motorized wire spool (optional) |
| Ultrasonic System | F&S Generator 100kHz (optional 67, 140kHz) |
Bonder Base
| Attribute | Detail |
|---|---|
| Axes | Programmable linear Z-axis with 60mm stroke, programmable linear Y-axis with 20mm stroke, standard working height 55mm, manipulator in X and Y 18x18mm, equivalent to 1:7 |
| Hardware | Stepper motor driven Z-linear axis, single-board PC, coin-guided teach-in, internal hard disk, menu-guided operation via shuttle wheel with confirmation button |
| Software | Programmable single bonds, loop shapes can be saved |
| Control | Manual, semi-automatic |
| Dimensions | W x D x H – 63 x 58 x 40cm, weight approx. 30kg |
| Connections | 100–230 VAC, 1 Phase, 50/60Hz, max 230VA, Ø6mm standard-vacuum tubing |
| Heater controller | Integrated in the machine, 0–250°C |
Workholder
| Type | Detail |
|---|---|
| Standard | Ø80mm workholder with mechanical clamping |
| Optional – Large parts | Workholder for parts up to 4×4″ with vacuum and mechanical clamping |
| Optional – TO | TO workholder with mechanical clamping |
| Optional – Rubbered | 4×4″ workholder with rubbered surface and mechanical clamping |
Explore our full range of wire and ribbon bonders to find the right system for your application.
