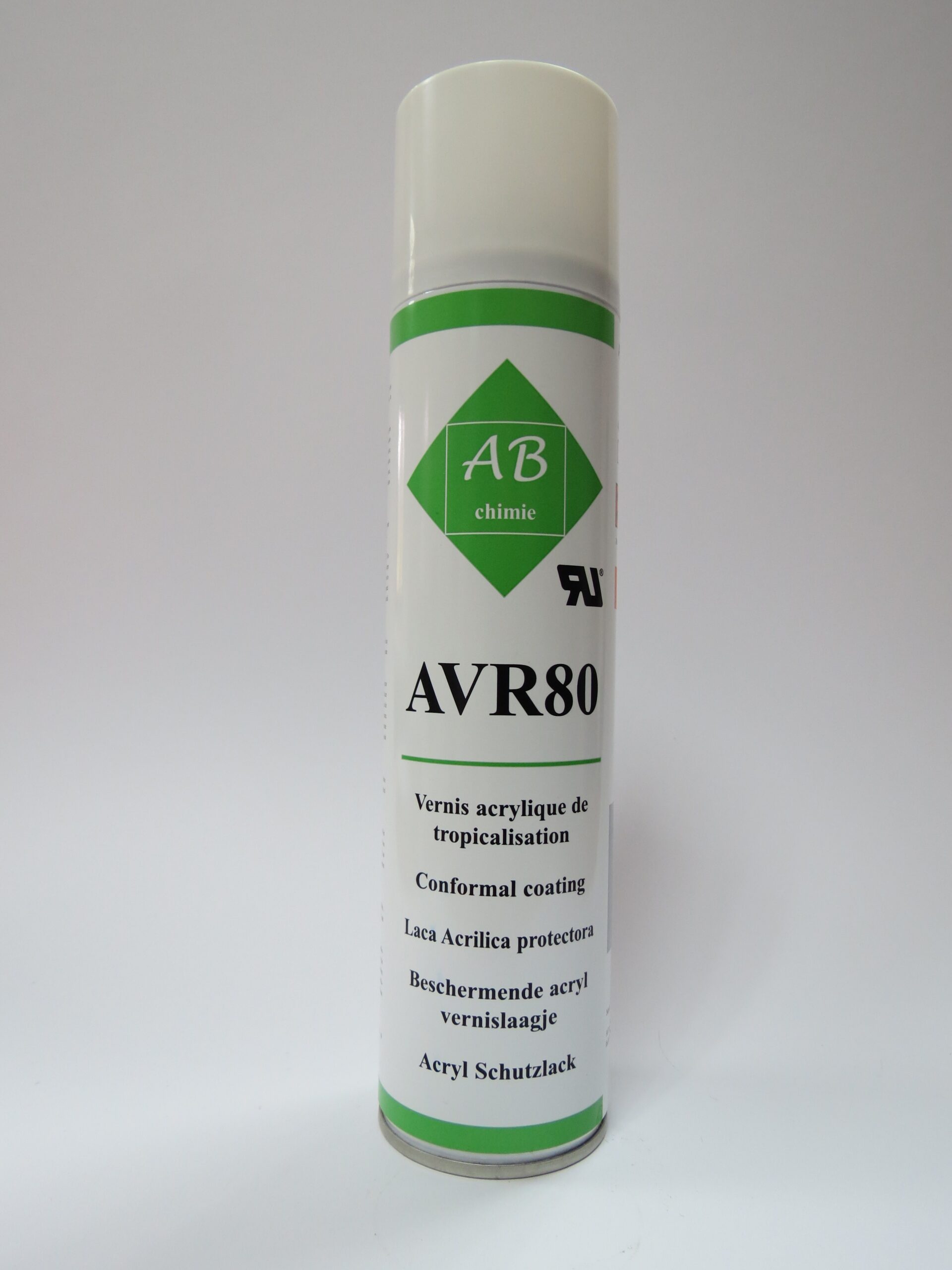

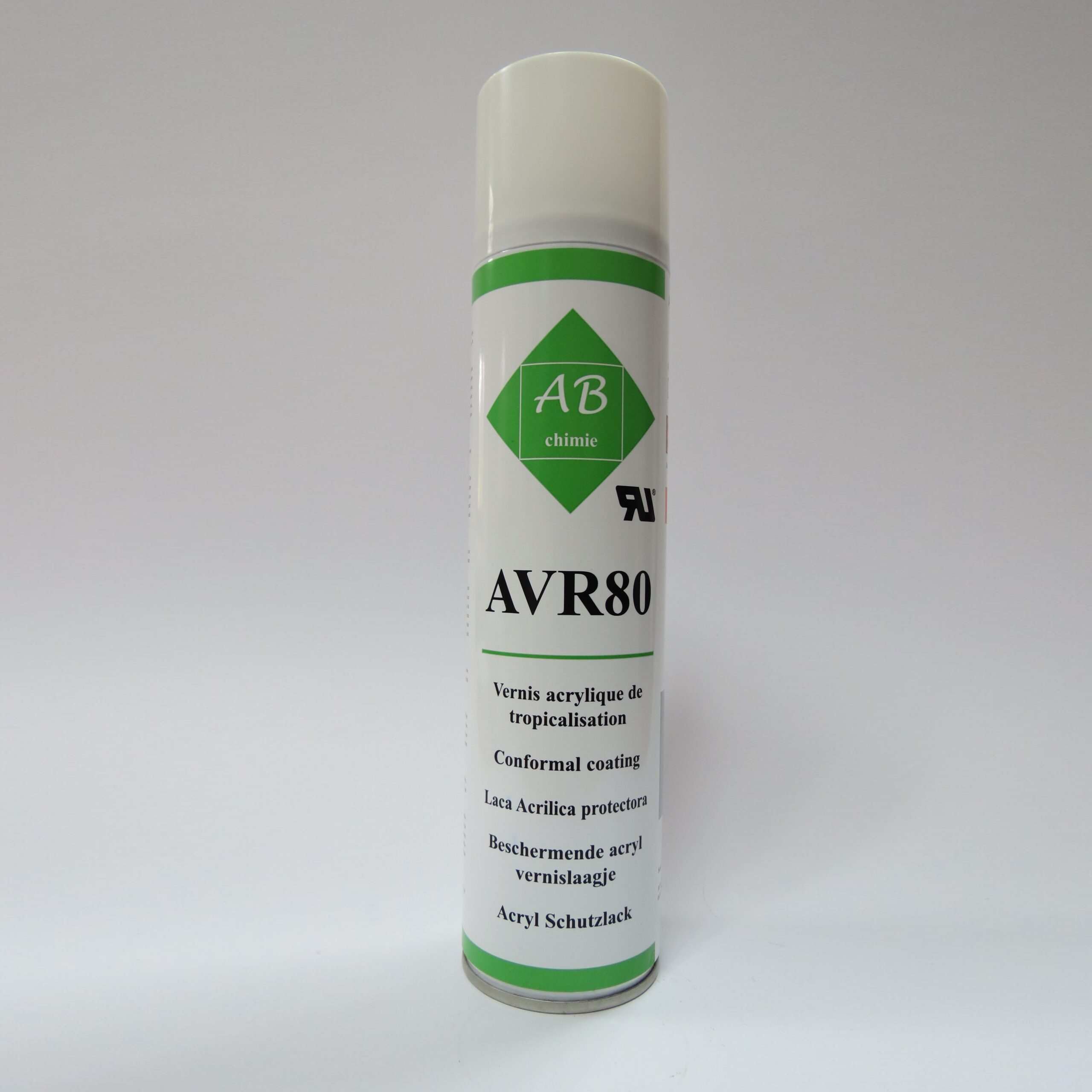

AB Chimie AVR80 BA Acrylic Removable Coating: Ultimate Protection with Removability

AB Chimie AVR80 BA Acrylic Removable Coating is a conformal coating designed for electronic circuitry. Non-toxic, flexible, and transparent acrylic coating. AVR80 can easily be stripped, or removed using SND or DNS cleaning solvent, both 100% Ozone Friendly.

AB Chimie AVR80 BA Acrylic Removable Coating Key Features:

• Excellent adhesion in all climatic conditions.
• UV fluorescence aids inspection.
• Wide temperature range: -65°C to +150°C.
• Solderable without toxic gas production (no isocyanates).
• Resistant to mould growth.
• Fully removable with ABchimie SND or DNS.
• Compatible with high-spec acrylic coatings.
• Outstanding dielectric properties.
• UL94V0 approval (File E308681).
• Meets IPC-CC-830 and MIL-I-46058C standards.
• Halogen-free.

Application: AVR80 BA can be applied through spraying, dipping, or brushing. Ensure cleanliness and dryness of PCBAs before coating. The coating’s UV trace allows easy inspection for complete coverage.

Homogenization and Cleaning: Homogenize AVR80 BA before use. Cleaning can enhance adhesion on substrates. ABchimie offers a range of 100% Ozone Friendly cleaning products.

Dip Coating: Thoroughly agitate coating material before immersing PCBAs. Use Acrylic Thinners (DVA BA) for suitable viscosity. Withdraw boards slowly for even coating, ensuring connectors are carefully masked.

Spraying: Thin bulk AVR80 BA with DVA BA R before spraying. Suitable for manual and computer-controlled airless spray equipment. Spray from all directions for even coating.

Brushing: Agitate coating material, gently apply with a high-quality brush, and place boards in an air-circulating drying cabinet.

Drying Times and Curing: Touch dry in 15-20 minutes at room temperature. Full properties after 24 hours. Thermal cure accelerates immediate adhesion.

Double Coating: Usually, one coat suffices. For two coats, apply the second after the first is dry.

AB Chimie AVR80 BA Acrylic Removable Coating Typical Properties:

• Liquid AVR80 BA:
  • Colour: Pale (Black for AVR80 BA B & BA BM).
  • Non-volatile content: 30% (22% for DS65 version).
  • Viscosity @ 20°C: 220 – 270 cSt (Bulk).
  • Specific Gravity @ 20°C: 0.93.
  • Flash Point: 25°C.
• Cured AVR80 BA Coating:
  • Colour: Transparent (blue reflection, Black for AVR80 BA B & BA BM).
  • Dielectric Strength: 50 kV/mm.
  • Temperature Range: -65°C to +150°C.
  • Flammability: Self-extinguishing (UL94V0).
  • Dissipation Factor (1MHz, 25°C): 0.01.

Available Versions: AVR80 BA offers various versions to suit diverse needs.

Packaging: Available in aerosol and bulk packaging for convenience.

Removal Solvents: SND (Flammable) and non-toxic DNS for easy removal.

Storage and Shelf Life: Store between 5 to 30°C, with a shelf life of 18 months after manufacturing.

Choose AVR80 BA for superior protection and ease of removal.
