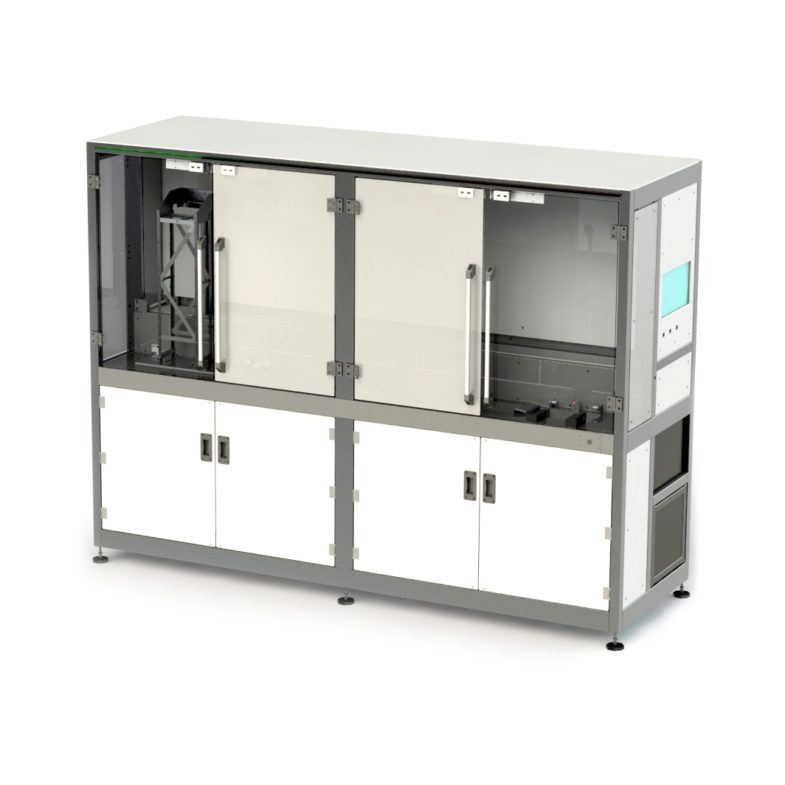

Hybrid Process Machine for cleaning after milling and polishing

CleanSys is a Swiss-made brand that specialises in high-quality industrial precision cleaning. CleanSys utilises aqueous and solvent-based cleaning products to meet the most rigorous specifications in industrial precision cleaning. CleanSys CSm-24R can be used in many different applications.

CleanSys CSm-24R machine specifications are:

• 6 sumps
• 8 litres each sump
• 1 linear robot
• Cleaning after milling and polishing
• Water base ad solvent process (hybrid)
• Ultrasonic System
• Mechanical Parts

CleanSys CSm-24R system specifications are:

• CLH-10 Robot for automatic process with agitation
• Sumps capacity for tray size 420mm x 300mm
• Detergent sumps
  • Single 40 KHz US
  • Heater
  • Drain
  • Automatic Cover
• Water sump
  • Single 40 KHz US
  • Heater
  • Drain
• Dewatering sump
  • Water level detection
  • Heater
  • Drain
• Co-Solvent sumps
  • Single 40 KHz US
  • Heater and full temperature control
• Dual HFE and boiling sumps (vapour degreasing)
  • Single 40 KHz US
  • Automatic cover
  • Water separator
• Integrated power cabinet with a touch screen interface
• Pumps and filters
• Remote diagnostic
• Cooling system with cold water heat exchange
