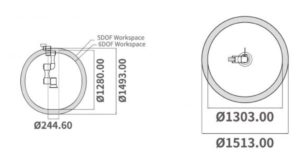

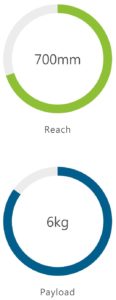

TM5-700 includes TM-Vision Hand Eye capability with max load 6KG and max reach of 700mm.
The TM 5 Series has full ISO/TS15066 CE certification and safety approved robot features up to +/-0.05mm point repeat-ability and easy to use software and servo assist teach modes. Programs for simple solutions can be released in 5-30 min as opposed to weeks and the robots can operate without safety fences in co-operation with machine operators.
TM Robot comes with built in vision hardware and integrated vision software with human machine interface. Function such as shape matching, barcode & QR code reading, color recognition, OCR etc are all easily configured from the integral robot design toolbox.
Another advantage having vision capability is the unique TM Workspace marker, a standard feature on TM5 Series Systems. A production program can quickly re-calibrate to work area positions in XYZ and tilt to start working even after moving systems , with no positional adjustment needed. This can have as many work space zones as you like.
OPTIONAL : TM5-700X Series Cobot is available as option with no Hand-Eye Vision Camera.
