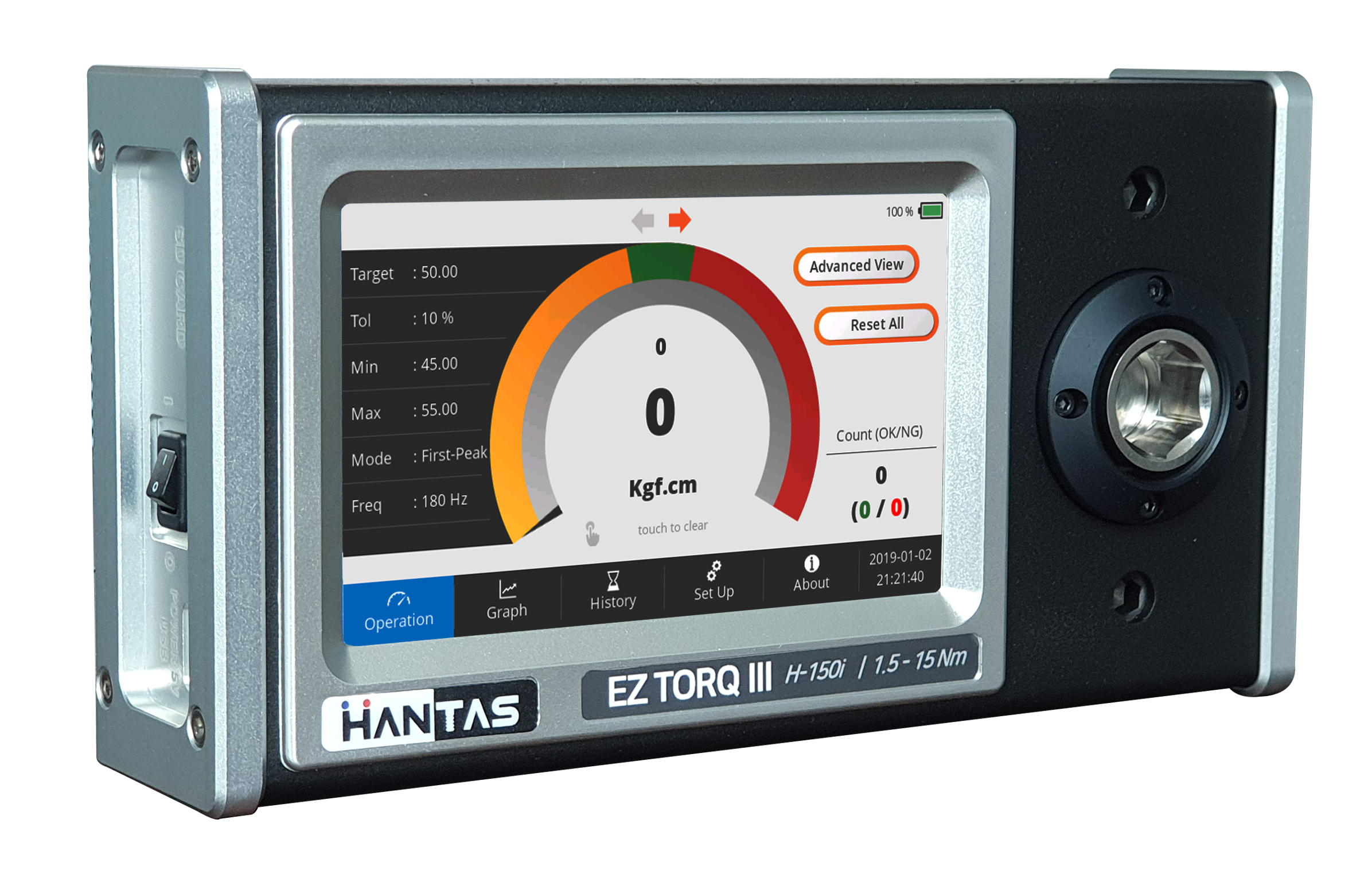

Hantas Torque Meter EZ-TORQⅢ

● User friendly graphic interface, easy operation
● 5 “ color LCD touch screen
● +/- 0.5% accuracy ( over 20% of full scale )
● Tools : Screwdriver, Nut runner, Click wrench, Pulse Tool
● OK / NG display on target and tolerance setting
● Torque curve graph with 1ms resolution
● Variable torque units
● Auto data saving in SD card

Accessories

 RUN DOWN ADAPTORS

Specification
 Power  DC3.7V 5,000mAh Li-ion rechargeable battery
 Battery charger  Mini USB port, DC5V 2A
 Power consumption & Battery run time









 LCD brightness and power consumption

100% = 600mA (6 hours)

75% = 500mA (8 hours)

50% = 450mA (9 hours)

25% = 330mA (11 hours)

 LCD display  1 ~ 105″ Color LCD Touch Screen (800 X 480 px)
 Battery charging time  6 hours for full charging
 Torque range  10i, 50i, 100i, 150i, 300i
 Accuracy  +/- 0.5% of reading @ 20 – 100% Full Scale (Bi directional calibration)
 Low pass filter selections  180 / 500 / 1000 Hz
 Operation Modes  Track, Peak, First Peak
 Torque units  ozf.in. / lbf.in / lbf.ft / cN.m / N.m / Kgf.m / Kgf.cm
 Data memory  Memory SD Card, up to 32GB
 Multi Language  English, Spanish, French, German, Chinese & Portuguese
 Test statistics  SPC data and CMK
 Reading history  10 lastest readings
 Display reset  Manual or Auto clear
 OK/NG judgement  By tolerance setting from target
Model Specification
 Code Model Torque Range(kgf.cm)

 108021

 EZ-TORQⅢ, H-1i  0.1 – 1

 108008

 EZ-TORQⅢ, H-3i

 0.2 – 3

 108009

 EZ-TORQⅢ, H-5i

 0.2 – 5

 108010

 EZ-TORQⅢ, H-10i

 0.5 – 10

 108011

 EZ-TORQⅢ, H-50i

 3 – 50

 108012

 EZ-TORQⅢ, H-100i

 5 – 100

 108013

 EZ-TORQⅢ, H-150i

 8 – 150

 108014  EZ-TORQⅢ, H-300

10 – 300
